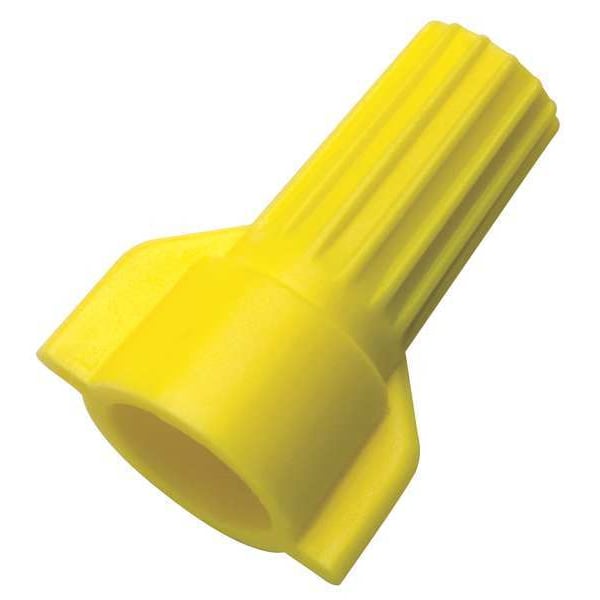

Conector de alambre de giro, 18-10 AWG, paquete de 100
| Color | Yellow |
|---|---|
| Min. Single Wire Size | 18 AWG |
| Max. Single Wire Size | 10 AWG |
| Series | WT51 |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (2) 18 AWG |
| Max. Wire Combination | (3) 12 AWG |
| Height | 0.72 in |
| Width | 0.51 in |
| Application | General Purpose |
| Standards | CSA Certified, UL Listed |
| Item | Twist On Wire Connector |
| Connector Type | WT51 |
| For Conductor Material | Copper |
| Special Features | Contoured Wing Design Provides Enhanced Torque, Expanding, Square-Wire Spring Creates Secure Connections, Wide, Deep Skirt Opening Accommodates a Variety of Wire Combinations |
| Maximum Wire Combination | (3) 12 AWG |
| Maximum Single Wire Size | 10 AWG |
| Contact Material | Steel |
| Overall Height | 0.72 in |
| Maximum Conductors | 4 |
| Minimum Wire Combination | (2) 18 AWG |
| Insulation Material | Polypropylene |
| Minimum Single Wire Size | 18 AWG |
| UL 94 Flammability Rating | V-2 |
| Maximum Voltage | 600 V |
| Overall Width | 0.51 in |
| Maximum Operating Temperature | 221 deg F |
| Package Quantity | 100 |
