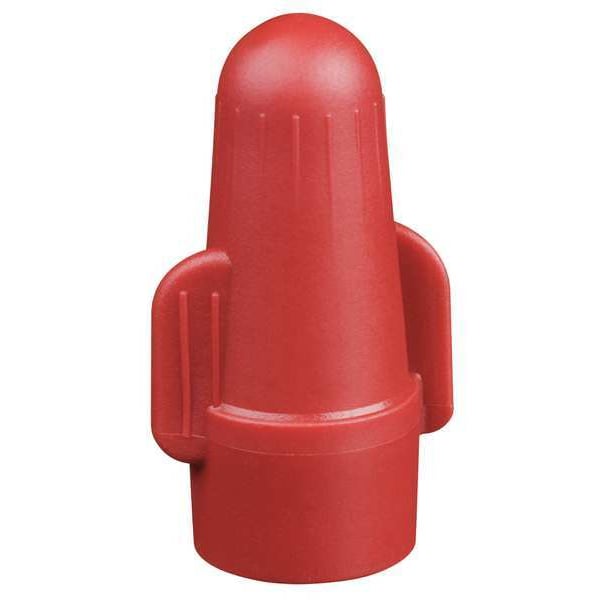

Conector de alambre con giro, calibre 18-8 AWG, paquete de 100.
| Color | Red |
|---|---|
| Min. Single Wire Size | 18 AWG |
| Max. Single Wire Size | 8 AWG |
| Series | BT2 |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (2) 18 AWG |
| Max. Wire Combination | (2) 8 AWG |
| Height | 0.74 in |
| Width | 0.48 in |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | CSA Certified, UL Listed |
| Connector Type | BT2 |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | V-2 |
| Maximum Wire Combination | (2) 8 AWG |
| Maximum Conductors | 6 |
| Overall Height | 0.74 in |
| Minimum Single Wire Size | 18 AWG |
| Special Features | Connection Comes to Torque Quickly to Get the Job Done Efficiently, Long Swept-Wings Improve Comfort and Torque, Rounded Dial-Top With Vertical Ribs Provides Fast Fingertip Starts, Wide, Expanding Spring Makes for Easy Starts on Even the Largest Combinations |
| For Conductor Material | Copper |
| Contact Material | Steel |
| Maximum Single Wire Size | 8 AWG |
| Minimum Wire Combination | (2) 18 AWG |
| Insulation Material | Polypropylene |
| Overall Width | 0.48 in |
| Maximum Operating Temperature | 221 deg F |
| Maximum Wire Gauge | 8 AWG |
| Minimum Wire Gauge | 18 AWG |
| Maximum Rated Voltage | 600V |
| Twist-On Style | Wing |
| Termination Method | Twist-On |
| Package Quantity | 100 |
