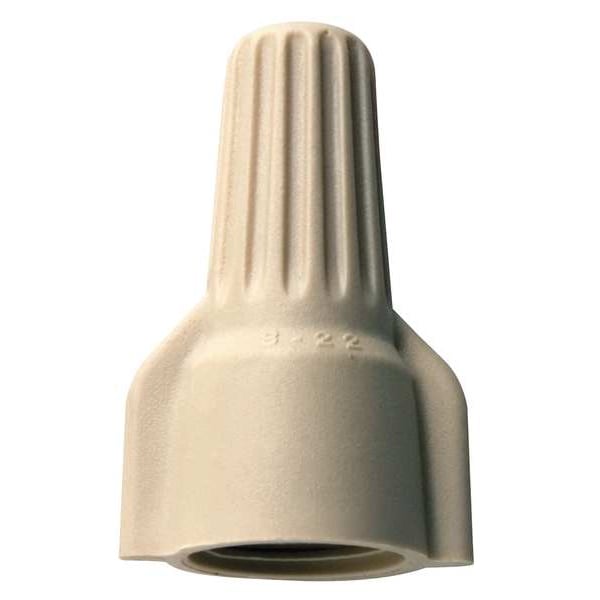

Conector de alambre de torsión, 22-10 AWG, paquete de 100
| Color | Tan |
|---|---|
| Min. Single Wire Size | 22 AWG |
| Max. Single Wire Size | 10 AWG |
| Series | WT41 |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (2) 20 AWG |
| Max. Wire Combination | (3) 10 AWG Solid |
| Height | 0.73 in |
| Width | 0.52 in |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | CSA Certified, UL Listed |
| Connector Type | WT41 |
| RoHS Compliant | Yes |
| Contact Material | Steel |
| Special Features | Contoured Wing Design Provides Enhanced Torque, Expanding, Square-Wire Spring Creates Secure Connections, Wide, Deep Skirt Opening Accommodates a Variety of Wire Combinations |
| Maximum Conductors | 6 |
| Overall Width | 0.52 in |
| Maximum Wire Combination | (3) 10 AWG |
| For Conductor Material | Copper |
| UL 94 Flammability Rating | V-2 |
| Minimum Single Wire Size | 22 AWG |
| Overall Height | 0.73 in |
| Maximum Operating Temperature | 221 deg F |
| Maximum Voltage | 600 V |
| Insulation Material | Polypropylene |
| Minimum Wire Combination | (2) 20 AWG |
| Maximum Single Wire Size | 10 AWG |
| Package Quantity | 100 |
