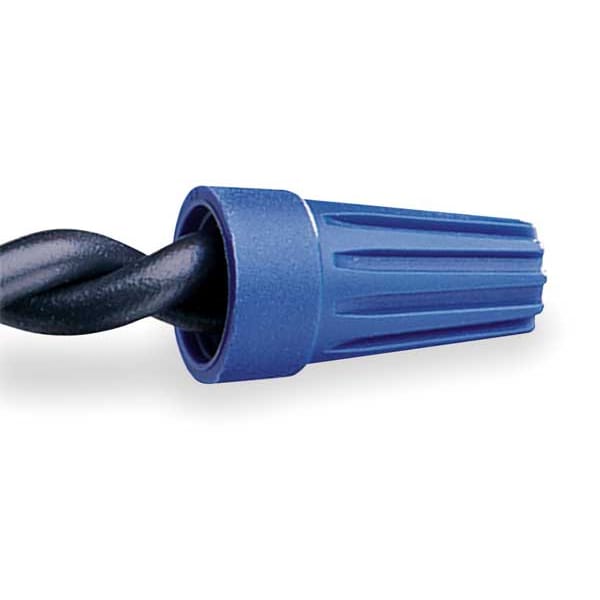

Twist On Wire Connector, 22-14 AWG, PK100
| Color | Blue |
|---|---|
| Min. Single Wire Size | 22 AWG |
| Max. Single Wire Size | 14 AWG |
| Series | WT2 |
| Max. Voltage | 300 V AC |
| Wire Connector Style | Twist-On |
| Min. Wire Combination | (2) 18 AWG |
| Max. Wire Combination | (3) 16 AWG |
| Height | 0.39 in |
| Width | 0.39 in |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | UL |
| Connector Type | WT2 |
| Maximum Voltage | 300 V |
| UL 94 Flammability Rating | V-2 |
| Overall Width | 0.39 in |
| Minimum Single Wire Size | 22 AWG |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Steel |
| For Conductor Material | Copper |
| Overall Height | 0.7 in |
| Maximum Conductors | 5 |
| Special Features | Creating a Secure Pressure Grip, Positive Grip Shell Designed for Fast, Easy Installation, The Deep, Wide-Throated Skirt Protects Against Flashover and Turned Back Strands Providing Excellent Dielectric Protection, The Fixed, Live-Action, Square-Wire Spring Threads Itself as It Draws Wires Into the Connector, The Rugged, Thermoplastic Shell Withstands Extreme Environments |
| Minimum Wire Combination | (3) 20 AWG |
| Insulation Material | Polypropylene |
| Maximum Wire Combination | (3) 16 AWG |
| Maximum Single Wire Size | 14 AWG |
| Contact Finish | Zinc |
| RoHS Compliant | Yes |
| Strip Length | 3/8 in |
| Outside Diameter | 0.39 in |
| Package Quantity | 100 |
