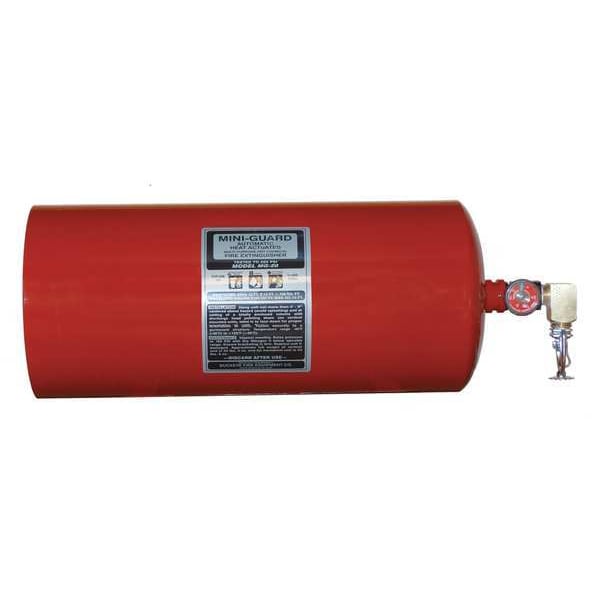

Automatic Spot Protection, 20 lb Capacity, Class ABC , UL Rating10A:120B:C , Monoammonium Phosphate
| Item | Automatic Spot Protection |
|---|---|
| Cylinder Material | Steel |
| Extinguisher Capacity | 20 lb |
| Extinguisher Class | ABC |
| UL Rating | 10A:120B:C |
| Valve Material | Aluminum |
| Extinguishing Agent Material Composition | Monoammonium Phosphate |
| Extinguishing Agent Type | Dry Chemical |
| Standards | USDOT |
| Discharge Time | 5 sec |
| For Fire Type | Common Combustibles, Electrical Equipment, Flammable Liquid |
| Mount Type | Wall Bracket |
| Diameter | 7-1/2 in |
| Height | 21-7/8 in |
| Hose Included | No |
| Extinguish Agent Type | Monoammonium Phosphate |
| Operating Pressure | 195 psi |
| Rechargeable | No |
| Range Max. | 14 ft |
| Disposable | Yes |
| Pressure Type | Stored |
| Cylinder Color | Red |
| Maximum Flood Volume | 2,184 cu ft |
| Charging | Non-Rechargeable |
| Cylinder Diameter | 7-1/2 in |
| Maximum Height Above Hazard | 14 ft (Flood), 4 ft (Local) |
| Local Spot Coverage | 156 sq ft |
| Usable Life | 12 yr |
| For Environment | Construction Trailers, Flammable Liquid Storage Rooms, Manufacturing Process Areas |
| Maximum Operating Pressure | 195 psi |
| Includes Mounting Hardware | Yes |
| Mounting Orientation | Horizontal |
| Sprinkler Temperature Rating | 165 Degrees F |
| Discharge Application | Flood, Local (Spot) |
| Cylinder Height | 21-7/8 in |
| Included Mount Bracket | Bracket Not Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
