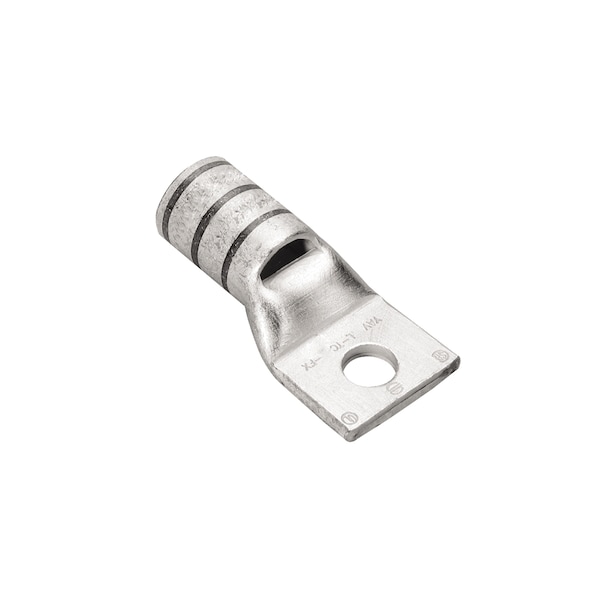

1 agujero compacto para flexibilidad estándar, 4/0 AWG 3/8 perno, agujero de inspección de propósito ROHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Purple |
| Dimension - Pad Width inch | 1.14 in |
| Conductor - Material | Copper |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Bolt Size fraction | 44993 |
| Die Index | 15 |
| Conductor - Copper Flex I Size | 4/0 AWG |
| Physical Attribute - Tongue Type | Standard |
| Certification - CSA Approved | Yes |
| Rating - Minimum Voltage | 600 |
| Application | For Flex Conductors |
| Dimension - Strip Length inch | 42370 |
| Conductor - Copper Str Size | 4/0 AWG |
| Plated | Y |
| Type | Tin Plated, Standard Barrel |
| Conductor - Copper Flex H Size | 4/0 AWG |
| Rating - KVA | 35 kV |
| Voltage - Maximum | 35000 |
| Dimension - Z inch | 0.42 in |
| Conductor - CopperWeld Str Size | 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Feature - Barrel Type | Standard |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Thread Size | 44993 |
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
| Conductor - Copper Flex G Size | 4/0 AWG |
| Dimension - N inch | 0.41 in |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Hole Size inch | 0.41 in |
| Dimension - B Length fraction | 1 in |
| Feature - Barrel Style | Chamfered |
| Dimension - Outside Diameter inch | 0.77 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Conductor - Copper Str Navy Size | 200 (61) Navy |
| Dimension - B Length inch | 1.03 in |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Dimension - L Length Overall mm | 61 mm |
| Dimension - Length Overall inch | 2.42 in |
| Plating Type | Tin |
| Dimension - Stud Size inch | 44993 |
| Inspection Hole | Yes |
| Holes | 1 HOLE |
| Bolt Hole | 3/8 in |
| Conductor Size/Gauge | 4/0 AWG |
| Lug Length X Tongue Width (In.) | 2.42 in x 1.14 in |
| Barrel | Short |
| Package Quantity | 1 |
