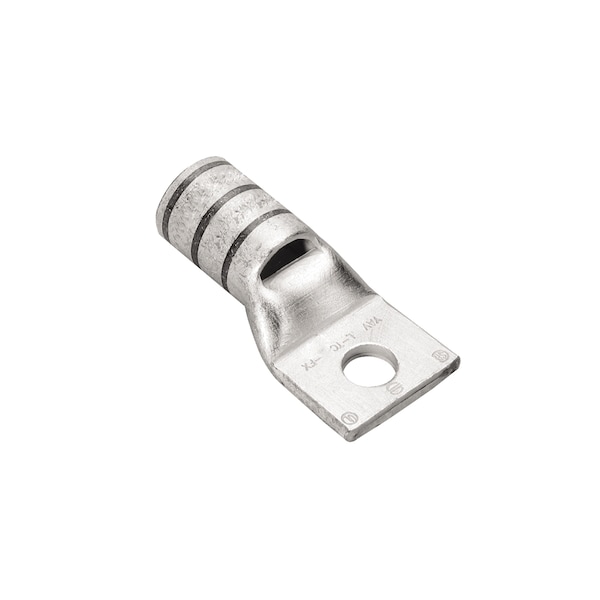

1 AGUJERO FLEXIBLE DE CABLE, BUSBAR ESTÁNDAR, 2/0, 2/0, BIRLO DE 3/8", AGUJERO DE INSPECCIÓN NEGRO ROHS
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Black |
| Rating - KVA | 35 kV |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin |
| Dimension - Z inch | 0.42 in |
| Dimension - Stud Size inch | 44993 |
| Feature - Barrel Type | Standard |
| Dimension - Bolt Hole Size inch | 0.4 in |
| Dimension - Length Overall inch | 2.11 in |
| Conductor - CopperWeld Str Size | 2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG |
| Dimension - Outside Diameter inch | 0.63 in |
| Die Index | 13 |
| Rating - Minimum Voltage | 600 |
| Voltage - Maximum | 35000 |
| Dimension - Bolt Size fraction | 44993 |
| Plated | Yes |
| Conductor - Material | Copper |
| Physical Attribute - Tongue Angle | Straight |
| Conductor - Copper Flex M Size | 2/0 AWG |
| Conductor - Copper Str Navy Size | 125 (61) Navy |
| Conductor - Copper Flex K Size | 2/0 AWG |
| Dimension - Strip Length inch | 13/16 |
| Certification - CSA Approved | Yes |
| Dimension - Hole Size inch | 0.4 in |
| Feature - Barrel Style | Chamfered |
| Dimension - Hole Size mm | 10 mm |
| Dimension - B Length inch | 0.81 in |
| Conductor - Copper DLO Size | 2/0 (375/#24) DLO |
| Dimension - N inch | 0.41 in |
| Conductor - Copper Flex I Size | 2/0 AWG |
| Conductor - Copper Flex H Size | 2/0 AWG |
| Conductor - Copper Flex G Size | 2/0 AWG |
| Type | Tin Plated, Standard Barrel |
| Dimension - Pad Width inch | 0.93 in |
| Application | For Flex Conductors |
| Dimension - L Length Overall mm | 54 mm |
| Conductor - Copper Str Size | 2/0 AWG |
| Lug Length X Tongue Width (In.) | 2.11 in x 0.93 in |
| Barrel | Short |
| Bolt Hole | 3/8 in |
| Inspection Hole | Yes |
| Conductor Size/Gauge | 2/0 AWG |
| Holes | 1 HOLE |
| Package Quantity | 1 |
