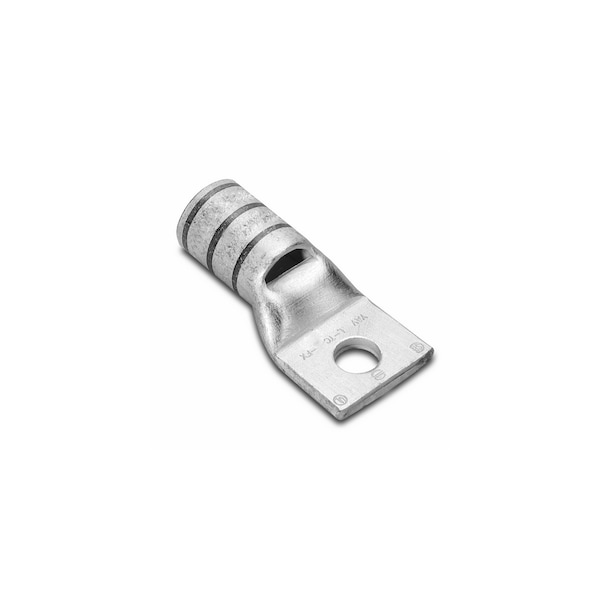

1 Flex Lug de 1 agujero, estándar BRL, 373, 350 MCM, perno de 1/2", orificio de inspección azul RoHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Blue |
| Gauge | 373KCMIL (AKA MCM) |
| Application | For Flex Conductor |
| Plated | Y |
| Conductor - Copper DLO Size | 373.7 (925/#24) DLO |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Flex H Size | 350 kcmil |
| Conductor - Copper Flex H Size Range | 350 kcmil |
| Dimension - Outside Diameter inch | 1.06 in |
| Dimension - Strip Length inch | 42374 |
| Die Index | 19;470 |
| Dimension - Stud Size inch | 1 to 2 |
| Plating Type | Tin |
| Voltage - Maximum | 35000 |
| Physical Attribute - Number of Holes | 1 |
| Conductor - Copper Flex G Size | 350 kcmil |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - L Length Overall mm | 79 mm |
| Dimension - Length Overall inch | 3.12 in |
| Rating - KVA | 35 kV |
| Dimension - Bolt Size fraction | 1 to 2 |
| Conductor - Copper Flex I Size | 350 kcmil |
| Conductor - Copper Flex K Size Range | 350 kcmil |
| Feature - Barrel Type | Standard |
| Dimension - B Length fraction | 1-1/4 in |
| Conductor - Copper Flex M Size | 350 kcmil |
| Dimension - Z inch | 0.55 in |
| Feature - Barrel Style | Chamfered |
| Conductor - Copper DLO Size Range | 373.7 (925/#24) DLO |
| Dimension - B Length inch | 1.27 in |
| Conductor - Copper Flex K Size | 350 kcmil |
| Type | Tin Plated, Standard Barrel |
| Conductor - Copper Flex I Size Range | 350 kcmil |
| Dimension - Hole Size mm | 13 mm |
| Dimension - N inch | 0.53 in |
| Conductor - Material | Copper |
| Dimension - Pad Width inch | 1.55 in |
| Dimension - Hole Size inch | 0.53 in |
| Conductor - Copper Flex M Size Range | 350 kcmil |
| Conductor - Copper Flex G Size Range | 350 kcmil |
| Certification - CSA Approved | Yes |
| Physical Attribute - Tongue Type | Standard |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Stud Hole Size (In.) | 1/2" |
| Holes | 1 HOLE |
| Bolt Hole | 1/2 in |
| Inspection Hole | Yes |
| Barrel | Short |
| Lug Length X Tongue Width (In.) | 3.12 in x 1.55 in |
| Package Quantity | 1 |
