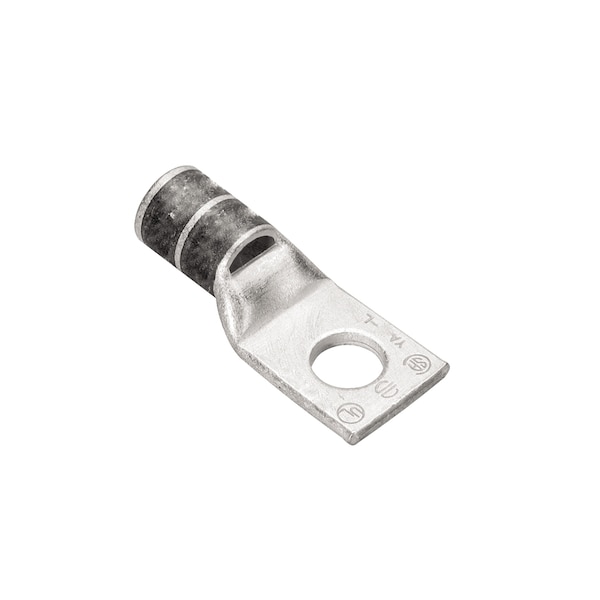

1 Gancho de flexión de un orificio estándar, 535MCM, 1/2" de tornillo, agujero de mirilla rosado.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Pink |
| Gauge | 535KCMIL (AKA MCM) |
| Plating Type | Tin |
| Conductor - Copper Flex I Size Range | 500 kcmil |
| Conductor - Copper DLO Size Range | 535.3 (1325/#24) DLO |
| Dimension - N inch | 0.53 in |
| Physical Attribute - Number of Holes | 1 |
| Conductor - Copper Flex M Size Range | 500 kcmil |
| Conductor - Copper Flex H Size | 500 kcmil |
| Conductor - Copper DLO Size | 535.3 (1325/#24) DLO |
| Rating - KVA | 35 kV |
| Conductor - Copper Flex M Size | 500 kcmil |
| Dimension - Strip Length inch | 42376 |
| Conductor - Copper Flex K Size Range | 500 kcmil |
| Dimension - Bolt Size fraction | 1 to 2 |
| Dimension - Length Overall inch | 3.41 in |
| Application | For Flex Conductor |
| Dimension - Hole Size mm | 13 mm |
| Conductor - Material | Copper |
| Dimension - Hole Size inch | 0.53 in |
| Type | Tin Plated, Standard Barrel |
| Die Index | L99 |
| Dimension - Stud Size inch | 1 to 2 |
| Plated | Y |
| Dimension - Z inch | 0.55 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Conductor - Copper Flex H Size Range | 500 kcmil |
| Feature - Barrel Style | Chamfered |
| Conductor - Copper Flex G Size Range | 500 kcmil |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.45 in |
| Dimension - Outside Diameter inch | 1-1/4 in |
| Physical Attribute - Tongue Type | Standard |
| Conductor - Copper Flex G Size | 500 kcmil |
| Conductor - Copper Flex I Size | 500 kcmil |
| Feature - Barrel Type | Standard |
| Dimension - L Length Overall mm | 87 mm |
| Dimension - B Length fraction | 1-7/16 in |
| Dimension - Pad Width inch | 1.84 in |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Flex K Size | 500 kcmil |
| Voltage - Maximum | 35000 |
| Certification - CSA Approved | Yes |
| Stud Hole Size (In.) | 1/2" |
| Holes | 1 HOLE |
| Inspection Hole | Yes |
| Lug Length X Tongue Width (In.) | 3.41 in x 1.84 in |
| Beveled Entry | Yes |
| Barrel | Short |
| Bolt Hole | 1/2 in |
| Package Quantity | 1 |
