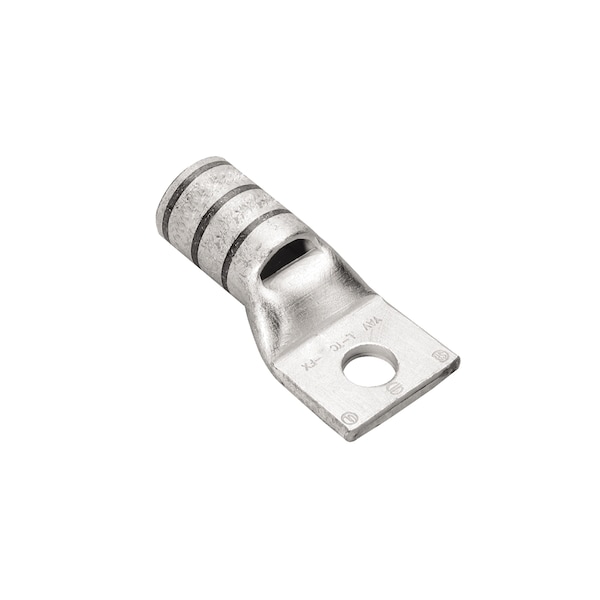

Terminal flexible de 1 agujero para cable de calibre 6AWG, perno de 1/4 de pulgada, con agujero de inspección azul.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Blue |
| Rating - Minimum Voltage | 600 |
| Dimension - B Length fraction | 1/2 in |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper DLO Size | 6 (61/24) DLO |
| Conductor - Material | Copper |
| Conductor - Copper Str Size Range | 16 mm² |
| Conductor - Copper Flex H Size Range | 6 AWG |
| Dimension - Length Overall inch | 1.43 in |
| Dimension - Stud Size inch | 44930 |
| Voltage - Maximum | 35000 |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex I Size | 6 AWG |
| Dimension - Hole Size inch | 0.27 in |
| Dimension - B Length inch | 1/2 in |
| Conductor - Copper Flex I Size Range | 6 AWG |
| Feature - Barrel Type | Standard |
| Dimension - Pad Width inch | 0.48 in |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Dimension - L Length Overall mm | 36 mm |
| Conductor - Copper Str Size | 16 mm² |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Standard |
| Dimension - Strip Length inch | 1/2 in |
| Conductor - Copper Str Navy Size Range | 30 Navy |
| Die Index | 7;374 |
| Conductor - Copper Solid Size | 6 AWG |
| Conductor - Copper Str Navy Size | 30 Navy |
| Conductor - Copper Flex G Size Range | 6 AWG |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Z inch | 0.33 in |
| Dimension - Outside Diameter inch | 0.31 in |
| Dimension - N inch | 0.31 in |
| Conductor - Copper DLO Size Range | 6 (61/24) DLO |
| Plating Type | Tin Electro Plated |
| Conductor - Copper Solid Size Range | 6 AWG |
| Physical Attribute - Tongue Angle | Straight |
| Application | For Flex Conductors |
| Conductor - Copper Flex K Size Range | 6 AWG |
| Certification - CSA Approved | Yes |
| Rating - KVA | 35 kV |
| Plated | Y |
| Dimension - Hole Size mm | 7 mm |
| Type | Tin Plated, Standard Barrel |
| Conductor - Copper Flex G Size | 6 AWG |
| Holes | 1 HOLE |
| Bolt Hole | 1/4 in |
| Lug Length X Tongue Width (In.) | 1.43 in x 0.48 in |
| Barrel | Short |
| Inspection Hole | Yes |
| Package Quantity | 1 |
