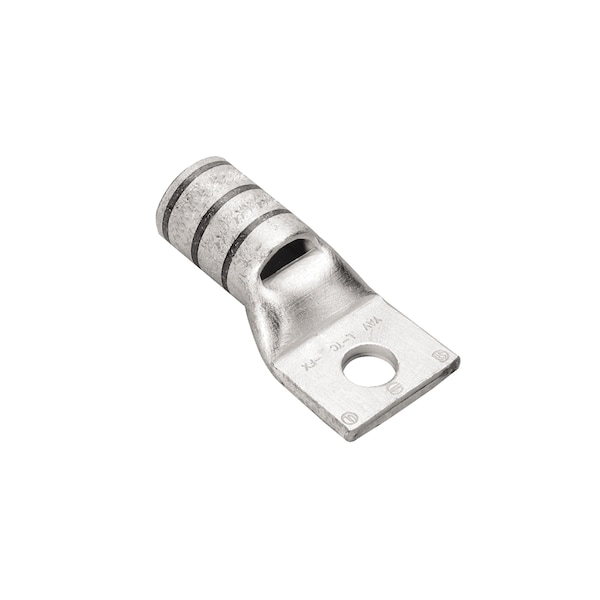

Flex Lug de 1 orificio, estándar BRL 6AWG, perno de 3/8", orificio de inspección azul ROHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Blue |
| Conductor - Copper Flex G Size | 6 AWG |
| Dimension - Hole Size inch | 0.4 in |
| Rating - KVA | 35 kV |
| Physical Attribute - Tongue Angle | Straight |
| Plated | Y |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Type | Tin Plated, Standard Barrel |
| Conductor - Copper Str Size Range | 16 mm² |
| Conductor - Copper Solid Size | 6 AWG |
| Dimension - Pad Width inch | 0.58 in |
| Physical Attribute - Tongue Type | Standard |
| Conductor - Copper Solid Size Range | 6 AWG |
| Conductor - Copper Flex H Size | 6 AWG |
| Dimension - Length Overall inch | 1.61 in |
| Dimension - Hole Size mm | 10 mm |
| Conductor - Copper Str Navy Size | 30 Navy |
| Plating Type | Tin Electro Plated |
| Conductor - Copper DLO Size Range | 6 (61/24) DLO |
| Dimension - Outside Diameter inch | 0.31 in |
| Certification - CSA Approved | Yes |
| Conductor - Copper Flex K Size Range | 6 AWG |
| Conductor - Copper Str Navy Size Range | 30 Navy |
| Die Index | 7;374 |
| Dimension - N inch | 0.41 in |
| Dimension - Strip Length inch | 1/2 in |
| Conductor - Copper Flex I Size | 6 AWG |
| Conductor - Copper Flex I Size Range | 6 AWG |
| Dimension - Z inch | 0.42 in |
| Dimension - Bolt Hole Size inch | 0.4 in |
| Physical Attribute - Number of Holes | 1 |
| Dimension - L Length Overall mm | 41 mm |
| Conductor - Material | Copper |
| Application | For Flex Conductors |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper DLO Size | 6 (61/24) DLO |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex H Size Range | 6 AWG |
| Conductor - Copper Str Size | 16 mm² |
| Dimension - B Length inch | 1/2 in |
| Feature - Barrel Type | Standard |
| Voltage - Maximum | 35000 |
| Conductor - Copper Flex G Size Range | 6 AWG |
| Dimension - B Length fraction | 1/2 in |
| Rating - Minimum Voltage | 600 |
| Dimension - Stud Size inch | 44993 |
| Bolt Hole | 3/8 in |
| Inspection Hole | Yes |
| Holes | 1 HOLE |
| Lug Length X Tongue Width (In.) | 1.61 in x 0.6 in |
| Barrel | Short |
| Package Quantity | 1 |
