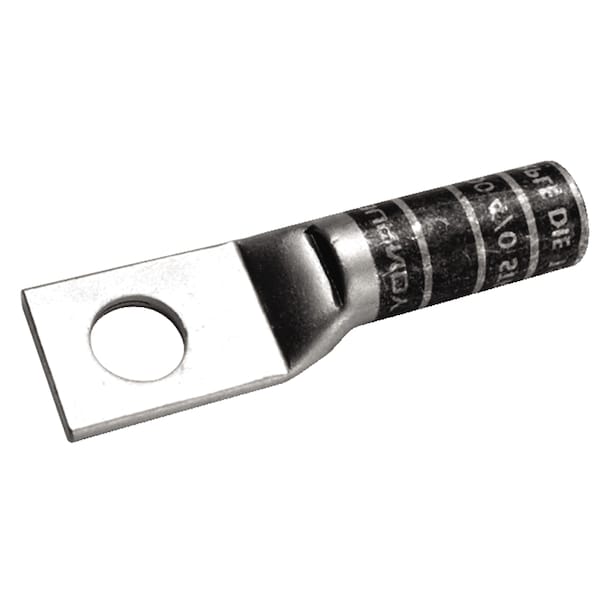

1 PERNO DE AGUJERO LARGO DE 1 HLR, CONECTORES DE 2 AWG, PERNOS DE 1/4 ", CON ORIFICIO DE INSPECCIÓN.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Brown |
| Dimension - N inch | 0.31 in |
| Dimension - Z inch | 0.33 in |
| Dimension - Length Overall inch | 2.21 in |
| Physical Attribute - Tongue Angle | Straight |
| Rating - KVA | 35 kV |
| Dimension - Stud Size inch | 44930 |
| Feature - Barrel Style | Skived |
| Dimension - Outside Diameter inch | 0.42 in |
| Voltage - Maximum | 35000 |
| Plating Type | Tin Electro Plated |
| Conductor - Copper Str Navy Size | 60 (37) Navy |
| Rating - Minimum Voltage | 600 |
| Certification - CSA Approved | Yes |
| Dimension - Hole Size mm | 7 mm |
| Conductor - Material | Copper |
| Feature - Barrel Type | Long |
| Plated | Yes |
| Dimension - Strip Length inch | 42374 |
| Dimension - B Length inch | 1-1/4 in |
| Die Index | 10 |
| Dimension - Hole Size inch | 0.27 in |
| Type | Tin Plated, Long Barrel, Skive |
| Dimension - L Length Overall mm | 56 mm |
| Conductor - Copper Str Size | 2 AWG |
| Dimension - Pad Width inch | 0.6 in |
| Application | For Code Conductor |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Inspection Hole | Yes |
| Lug Length X Tongue Width (In.) | 2.23 in x 0.6 in |
| Bolt Hole | 1/4 in |
| Holes | 1 HOLE |
| Package Quantity | 1 |
