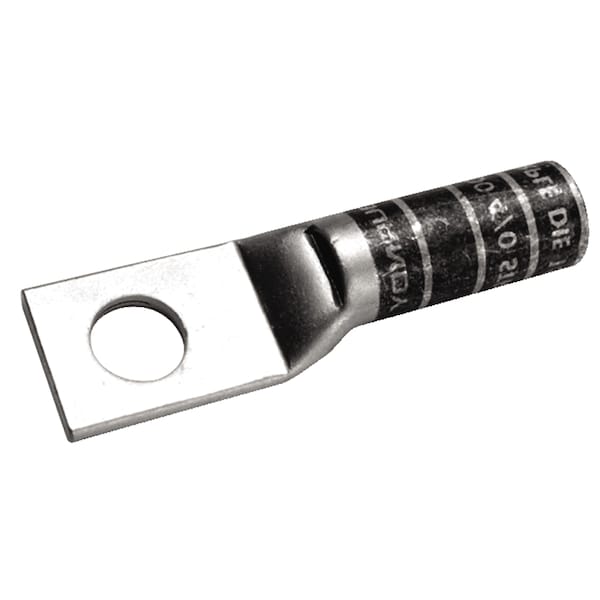

LUG DE 1 AGUJERO DE BARRA LARGA DE 8 AWG, PERNO #10, AGUJERO DE INSPECCIÓN.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Red |
| Physical Attribute - Tongue Angle | Straight |
| Conductor - Copper Str Navy Size | 23 (7) Navy |
| Dimension - Z inch | 0.27 in |
| Dimension - Stud Size inch | #10 |
| Dimension - Pad Width inch | 0.41 in |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Str Size | 8 AWG |
| Rating - KVA | 35 kV |
| Feature - Barrel Style | Skived |
| Dimension - Outside Diameter inch | 0.27 in |
| Dimension - B Length fraction | 1-1/4 in |
| Dimension - B Length inch | 3/4 in |
| Dimension - Length Overall inch | 1.43 in |
| Dimension - Hole Size mm | 5 mm |
| Plating Type | Tin Electro Plated |
| Dimension - L Length Overall mm | 36 mm |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Hole Size inch | 0.21 in |
| Dimension - Bolt Hole Size inch | 0.2 in |
| Conductor - Material | Copper |
| Dimension - N inch | 1/4 in |
| Dimension - Strip Length inch | 13/16 |
| Certification - CSA Approved | Yes |
| Voltage - Maximum | 35000 |
| Type | Tin Plated, Long Barrel, Skive |
| Die Index | 49 |
| Plated | Y |
| Feature - Barrel Type | Long |
| Holes | 1 HOLE |
| Bolt Hole | 10MM |
| Inspection Hole | Yes |
| Lug Length X Tongue Width (In.) | 1.58 in x 0.41 in |
| Package Quantity | 1 |
