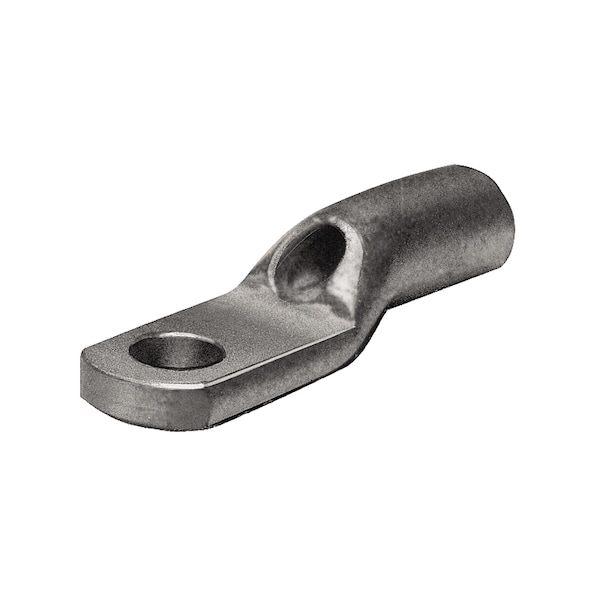

Barra corta de una conexión, con un orificio, calibre #12-#10 AWG para un perno de 8-10". Orificio de inspección ROHS.
| Connector Type | Terminal - Ring |
|---|---|
| Material | Copper |
| Color Code | Black |
| Gauge | #12 - #2 |
| Physical Attribute - Tongue Type | Ring |
| Dimension - Hole Size mm | 5 mm |
| Dimension - Length Overall inch | 0.53 in |
| Plating Type | Tin Electro Plated |
| Dimension - Z inch | 1/4 in |
| Dimension - Pad Width inch | 0.38 in |
| Dimension - Outside Diameter inch | 0.22 in |
| Conductor - Copper Str Size | 12;10 |
| Feature - Barrel Style | Chamfered |
| Dimension - Hole Size inch | 0.19 in |
| Dimension - Strip Length inch | 45062 |
| Feature - Barrel Type | Standard |
| Conductor - Copper Str Size Range | 45270 |
| Dimension - B Length inch | 0.38 in |
| Conductor - Copper Str Aircraft Size Range | AN 12-AN 10 |
| Type | Ring Tongue |
| Plated | Y |
| Dimension - Hole Size fraction | 44931 |
| Application | For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors |
| Conductor - Copper Str Aircraft Size | AN 12;AN 10 |
| Dimension - N inch | 0.19 in |
| Dimension - B Length fraction | 3/8 in |
| Dimension - G inch | 0.57 in |
| Physical Attribute - Number of Holes | 1 |
| Dimension - L Length Overall mm | 13 mm |
| Dimension - Stud Size inch | #8;#9;#10 |
| Inspection Hole | Yes |
| Center Spacing | 1 in |
| Bolt Hole | 8-10 in |
| Barrel | Short |
| Beveled Entry | Yes |
| Degree | 90 Degree |
| Holes | 1 HOLE |
| Package Quantity | 1 |
