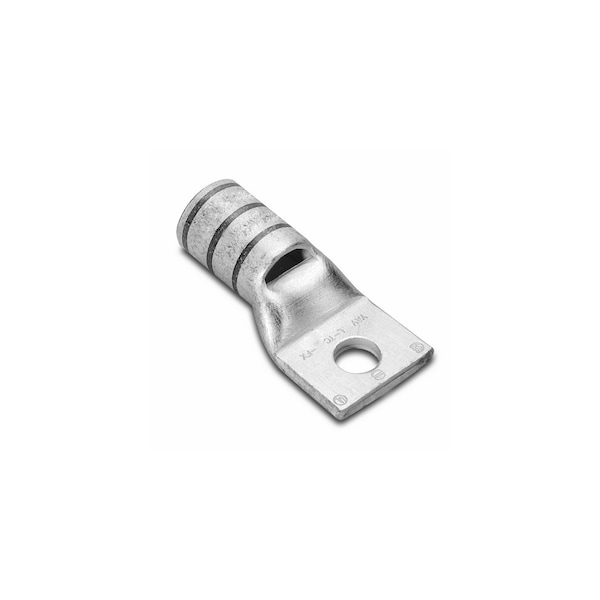

1 CONECTOR DE UN AGUJERO ESTÁNDAR, CALIBRE 2 AWG FLEXIBLE, PERNIO DE 1/2", AGUJERO DE INSPECCIÓN.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Brown |
| Application | For Flex Conductors |
| Conductor - Copper Flex I Size | 2 AWG |
| Die Index | 10 |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Certification - CSA Approved | Yes |
| Voltage - Maximum | 35000 |
| Type | Tin Plated, Standard Barrel |
| Dimension - Strip Length inch | 45246 |
| Conductor - Copper Solid Size | 2 AWG |
| Plated | Y |
| Dimension - B Length fraction | 5/8 in |
| Dimension - Z inch | 0.55 in |
| Physical Attribute - Tongue Type | Standard |
| Rating - KVA | 35 kV |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Pad Width inch | 0.73 in |
| Conductor - Copper Flex G Size | 2 AWG |
| Dimension - Length Overall inch | 2.12 in |
| Dimension - Hole Size inch | 0.53 in |
| Conductor - Material | Copper |
| Physical Attribute - Tongue Angle | Straight |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Str Navy Size | 60 (37) Navy |
| Dimension - Stud Size inch | 1 to 2 |
| Conductor - Copper DLO Size | 3 (125/#24) DLO;2 (150/#24) DLO |
| Conductor - CopperWeld Str Size | 2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG |
| Dimension - Outside Diameter inch | 0.46 in |
| Plating Type | Tin Electro Plated |
| Dimension - L Length Overall mm | 54 mm |
| Dimension - N inch | 0.53 in |
| Dimension - Hole Size mm | 13 mm |
| Conductor - Copper Str Size | 2 AWG |
| Feature - Barrel Style | Chamfered |
| Dimension - B Length inch | 0.63 in |
| Feature - Barrel Type | Standard |
| Conductor - Copper Flex K Size | 2 AWG |
| Conductor - Copper Flex M Size | 2 AWG |
| Conductor - Copper Flex H Size | 2 AWG |
| Inspection Hole | Yes |
| Stud Hole Size (In.) | 1/2" |
| Lug Length X Tongue Width (In.) | 2.12 in x 0.77 in |
| Holes | 1 HOLE |
| Bolt Hole | 1/2 in |
| Barrel | Short |
| Package Quantity | 1 |
