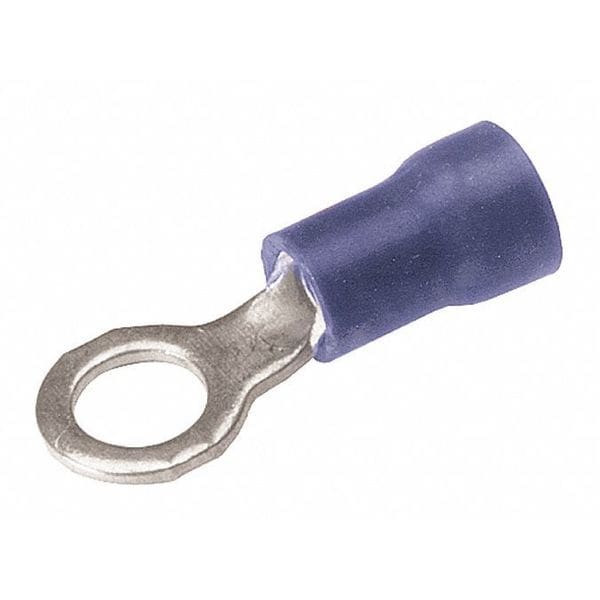

Terminal de anillo de vinilo de calibre 16-14 para tornillo #6, #8
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6, #8 |
| Insulation Color | Blue |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Connection Material | Copper |
| Terminal Type | Ring Tongue |
| Standards | CSA Certified; UL467; UL Listed |
| Overall Length | 0.91 in |
| Seam | Shrouded |
| Insulation Dia | 0.190 in |
| Application | For Commercial And Light Duty Industrial Control And Power Circuit Applications |
| Dimension - Length Overall inch | 0.91 in |
| UL Listed | Yes |
| Dimension - B Length inch | 0.26 in |
| Dimension - L Length Overall mm | 23 mm |
| Plated | Yes |
| Trade Name | VINYLUG™ |
| Connector Type | Ring Terminal |
| Standards - Industry Standards Met | UL467 |
| Conductor Range | #16 AWG to #14 AWG |
| Conductor Type | CU C Solid-SizeCU C Str-Size |
| Dimension - B Length fraction | 13/50 in |
| Certification - CSA Approved | Yes |
| Dimension - Hole Size fraction | 17,380 |
| Dimension - Stud Size inch | #8 |
| Dimension - Hole Size inch | 0.17 in |
| Dimension - Bolt Size fraction | #8 |
| Plating Type | Tin |
| Conductor Size | 16 to 14 AWG |
| Industry Standard(s) | UL467 |
| Dimension - Diameter Max Size inch | 0.19 in |
| Voltage - Maximum | 600 V |
| Dimension - Pad Width inch | 0.31 in |
| Type | Ring Tongue |
| Feature - Barrel Style | Shrouded |
| Color Code | Blue |
| Cable Insulation Diameter Maximum | 0.19 in |
| Physical Attribute - Tongue Type | Ring |
| Dimension - Z inch | 0.26 in |
| Dimension - Strip Length inch | 13/64 in |
| Material | Copper |
| Insulation | Y |
| Physical Attribute - Number of Holes | 1 |
| Package Quantity | 1 |
