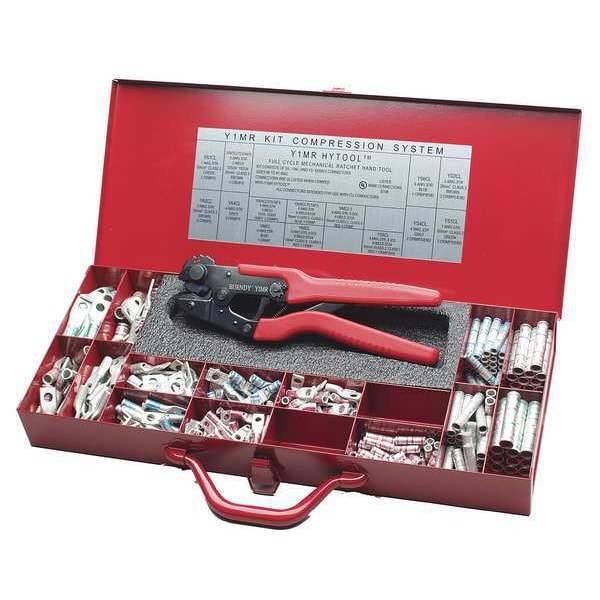

17.35" Crimper and Connector Kit 16 to 4 AWG
| Primary Crimping Application | Electrical Wire and Cable |
|---|---|
| Insulated / Uninsulated | Uninsulated |
| Handle Type | Cushion Grip |
| Capacity | 16 to 4 AWG |
| Overall Length | 9-7/8 in |
| For Use With | Cu Lug and Splice Connectors# of CrimpsConnector Die Per BarrelCopper Catalog Index # LengthWire Size Types (Color) Std LongYA8C-# 8 AWG YS8C- 49Code and Flex YAV8C- (Red)1 2YSV8C-#6 AWG YA6CCodeYS6C- 7#6 AWG YAV6C- (Blue)1 2Code and Flex YSV6C-#4 AWG YA4CCodeYS4C- 8#4 AWG YAV4C- (Grey)2 4Code and Flex YSV4C-#3 AWG YA3C- 9#2 Sol. YS3C- (White)2 4#2 AWG YA2CCodeYS2C- 10/#2 AWG YAV2C- (Brown)2 4Code and Flex YSV2C-#1 AWG YA1C- 11/Code YS1C- (Green)2 4 |
| Adjustable | Manual |
| Material | Heavy Gauge Steel |
| Max. Crimping Force | 9000 lb |
| Replacement Die Code | None |
| Features | Heavy Gauge, Rugged Clasp |
| Cuts | No |
| Standards | RoHS Compliant |
| Width | 7.38 in |
| Application | Type Y1MRTC Mechanical Full Cycle Ratchet HYTOOL will Accommodate Copper Compression Hydentconnectors for #8 Through #1 Code Conductor, #8 Through #2 Class I Flexible Strand Copper Conductor and #2 Solid |
| Includes | Rachet Tool, Metal Carrying Case, 1-Hole Terminals and Splices |
| Item | Crimper and Connector Kit |
| Strips | No |
| Insulated | No |
| Tool Length | 17.85 in |
| Maximum Crimping Capacity - Copper Lug | 1 AWG |
| Grip Style | Standard Cushion |
| Container Type | Metal Carrying Case |
| Connectors Included | 1-Hole Terminals and Splices |
| Maximum Crimping Force | 4.5 ton |
| Minimum Compatible Wire Size | 4 AWG |
| Compatible Terminal Type | Uninsulated |
| Adjustability | Manual |
| Crimper Style | Ratcheting Crimper |
| Crimping Capacity - Copper Lug | 1 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG |
| Number of Crimping Sizes | 11 |
| Compatible Cable Type | Copper Cable |
| Tool Included | Crimper |
| Minimum Crimping Capacity - Copper Lug | 8 AWG |
| Compatible Connector Type | Splice: YS, YSV Type, Terminal: YA, YAV Type |
| Maximum Compatible Wire Size | 8 AWG |
| Package Quantity | 1 |
