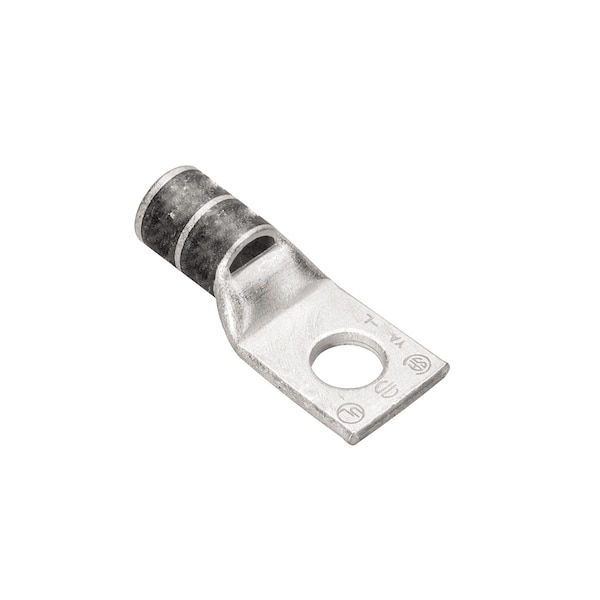

Terminal para cable de 1 hora de resistencia estándar, 3/0 STR 5/16" perno, con inspección de aislamiento de resistencia al fuego y cumpliendo con la directiva ROHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Orange |
| Die Index | 14 |
| Voltage - Maximum | 35000 |
| Type | Tin Plated, Standard Barrel |
| Dimension - Bolt Hole Size inch | 0.33 in |
| Dimension - Hole Size mm | 8 mm |
| Dimension - Bolt Size fraction | 45062 |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Stud Size fraction | 45062 |
| Plated | Y |
| Dimension - Length Overall inch | 2.16 in |
| Conductor - Material | Copper |
| Conductor - Copper Str Size Range | 3/0 AWG |
| Dimension - L Length Overall mm | 55 mm |
| Dimension - D inch | 0.7 in |
| Dimension - B Length fraction | 1 in |
| Industry Standard(s) | UL467 |
| Dimension - B Length inch | 1 in |
| Feature - Barrel Type | Standard |
| Standards - Industry Standards Met | UL467 |
| Dimension - N inch | 0.34 in |
| Conductor - Copper Str Size | 3/0 AWG |
| Certification - CSA Approved | Yes |
| Dimension - Strip Length inch | 42370 |
| Application | For Code Conductor |
| Rating - KVA | 35 kV |
| Dimension - Z inch | 0.36 in |
| Physical Attribute - Tongue Angle | Straight |
| Plating Type | Tin Electro Plated |
| Dimension - Stud Size inch | 45062 |
| Rating - Minimum Voltage | 600 |
| Physical Attribute - Tongue Type | Standard |
| Conductor - Copper Str Navy Size Range | 150 (61) Navy |
| Dimension - Pad Width inch | 0.91 in |
| Dimension - Outside Diameter inch | 0.62 in |
| Conductor - Copper Str Navy Size | 150 (61) Navy |
| Inspection Hole | Yes |
| Holes | 1 HOLE |
| Lug Length X Tongue Width (In.) | 2.16 in x 0.91 in |
| Conductor Size/Gauge | 3/0 AWG |
| Bolt Hole | 5/16 in |
| Package Quantity | 1 |
