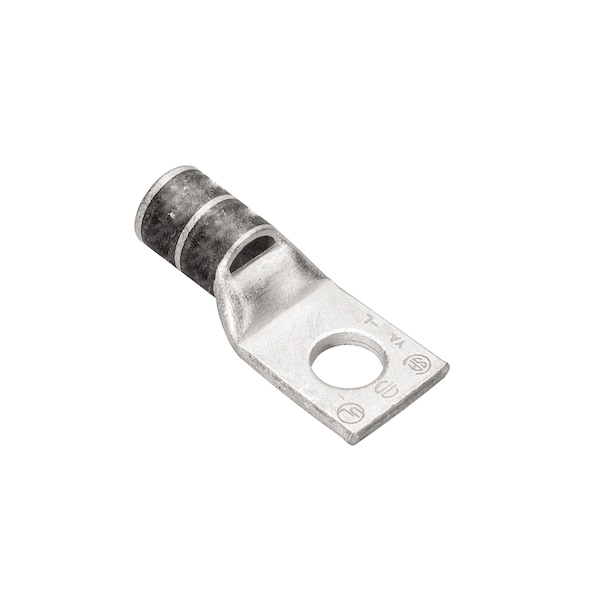

1H LUG STND BRL, #8 STR/#6 SOL 5/16" STUD, W/INSP WIND RED ROHS
1H LUG STND BRL, #8 STR/#6 SOL 5/16" STUD, CON INSPECCIÓN DE VIENTO RED ROHS
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Red |
| Conductor - Copper Solid Size | 6 AWG |
| Dimension - Outside Diameter inch | 0.27 in |
| Conductor - Copper Str Size | 8 AWG |
| Temperature Rating | 194 |
| Voltage - Maximum | 35000 |
| Plated | Y |
| Dimension - Pad Width inch | 0.52 in |
| Conductor - Copper Str Navy Size Range | 23 (7) Navy |
| Feature - Barrel Style | Chamfered |
| Conductor - Material | Copper |
| Type | Tin Plated, Standard Barrel |
| Dimension - L Length Overall mm | 35 mm |
| Dimension - Z inch | 0.36 in |
| Physical Attribute - Tongue Type | Standard |
| Application | For Code Conductor |
| Conductor - Copper Str Size Range | 8 AWG |
| Feature - Barrel Type | Standard |
| Dimension - Stud Size fraction | 45062 |
| Rating - Minimum Voltage | 600 |
| Dimension - N inch | 0.34 in |
| Conductor - Copper Solid Size Range | 6 AWG |
| Certification - CSA Approved | Yes |
| Dimension - Bolt Hole Size inch | 0.33 in |
| Plating Type | Tin Electro Plated |
| Dimension - Hole Size mm | 8 mm |
| Physical Attribute - Tongue Angle | Straight |
| Rating - KVA | 35 kV |
| Dimension - Stud Size inch | 45062 |
| Dimension - Hole Size inch | 0.33 in |
| Dimension - D inch | 0.7 in |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Strip Length inch | 45123 |
| Die Index | 49 |
| Dimension - Length Overall inch | 1.38 in |
| Dimension - B Length inch | 0.44 in |
| Conductor - Copper Str Navy Size | 23 (7) Navy |
| Inspection Hole | Yes |
| Bolt Hole | 5/16 in |
| Holes | 1 HOLE |
| Lug Length X Tongue Width (In.) | 1.38 in x 0.52 in |
| Package Quantity | 1 |
