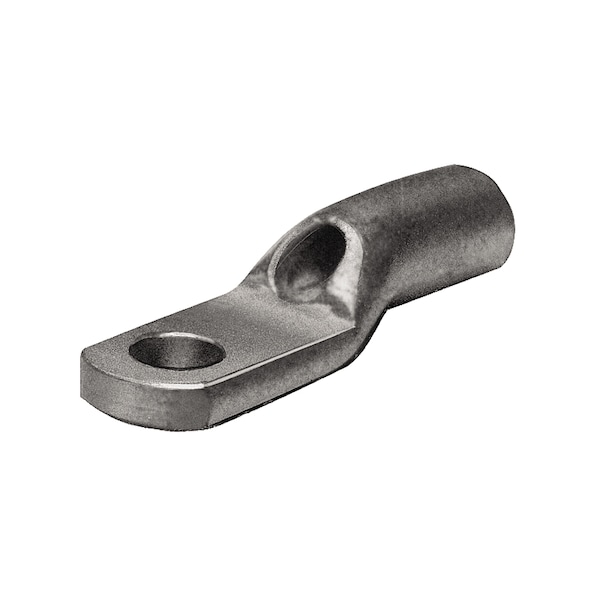

Terminal de ojal estándar de 1 hora con anillo de lengüeta, cable de calibre #14-#10 trenzado / #12-#10 sólido. Tamaño de orificio de 1/4".
| Connector Type | Terminal - Ring |
|---|---|
| Material | Copper |
| Color Code | Black |
| Dimension - Length Overall inch | 1.1 in |
| Dimension - N inch | 0.23 in |
| Conductor - Copper Solid Size | 12 AWG;11 AWG;10 AWG |
| Feature - Barrel Type | Standard |
| Dimension - B Length fraction | 16/41 in |
| Dimension - Stud Size inch | 1/4 in |
| Dimension - D inch | 0.57 in |
| Dimension - Z inch | 0.32 in |
| Physical Attribute - Tongue Angle | Straight |
| Plated | Y |
| Physical Attribute - Tongue Type | Ring |
| Dimension - B Length inch | 0.39 in |
| Application | For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance |
| Dimension - Outside Diameter inch | 0.21 in |
| Certification - CSA Approved | Yes |
| Standards - Industry Standards Met | UL467 |
| Feature - Barrel Style | Chamfered |
| Conductor - Copper Solid Size Range | 12 AWG-10 AWG |
| Type | Ring Tongue |
| Conductor - Copper Str Size Range | 14 AWG-10 AWG |
| Industry Standard(s) | UL467 |
| Plating Type | Tin Electro Plated |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG |
| Dimension - Pad Width inch | 0.47 in |
| Dimension - Strip Length inch | 7/16 in |
| Dimension - L Length Overall mm | 28 mm |
| Physical Attribute - Number of Holes | 1 |
| Bolt Hole | 1/4 in |
| Holes | 1 HOLE |
| Beveled Entry | Yes |
| Center Spacing | 1 in |
| Inspection Hole | Yes |
| Package Quantity | 1 |
