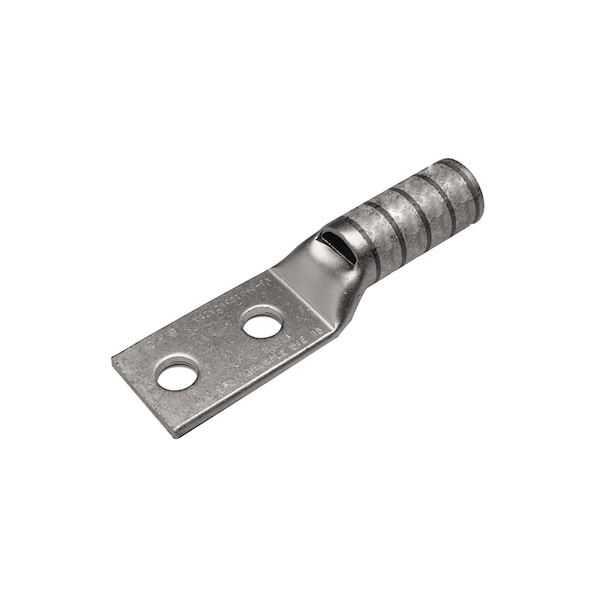

2 orificios, compresión flexible, estándar BRL, calibre 14-10 AWG, 10 pernos, centro de 5/8 pulgada, orificio de inspección.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Black |
| Gauge | 12 AWG |
| Conductor - Copper Solid Size Range | 12 AWG-10 AWG |
| Plated | Y |
| Application | For Code Conductor |
| Feature - Barrel Style | Chamfered |
| Dimension - B Length inch | 0.38 in |
| Conductor - Copper Solid Size | 12 AWG;11 AWG;10 AWG |
| Dimension - Z inch | 0.26 in |
| Dimension - Length Overall inch | 1.72 in |
| Dimension - Pad Width inch | 0.36 in |
| Dimension - Hole Size inch | 0.21 in |
| Dimension - D inch | 1.13 in |
| Dimension - Hole Size mm | 5 mm |
| Dimension - Strip Length inch | 45123 |
| Plating Type | Tin Electro Plated |
| Conductor - Copper Str Navy Size Range | 3 (7) Navy-9 (37) Navy |
| Rating - KVA | 35 kV |
| Conductor - Copper Str Navy Size | 3 (7) Navy;4 (1) Navy;4 (7) Navy;4 (19) Navy;4 (41) Navy;6 (7) Navy;6 (19) Navy;9 (7) Navy;9 (37) Navy |
| Physical Attribute - Number of Holes | 2 |
| Temperature Rating | 194 |
| Dimension - Outside Diameter inch | 0.21 in |
| Physical Attribute - Tongue Type | Standard |
| Physical Attribute - Tongue Angle | Straight |
| Certification - CSA Approved | Yes |
| Dimension - N inch | 1/4 in |
| Feature - Barrel Type | Standard |
| Conductor - Copper Str Size Range | 14 AWG-10 AWG |
| Dimension - L Length Overall mm | 44 mm |
| Dimension - B Length fraction | 3/8 in |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG |
| Dimension - Bolt Hole Size inch | 0.2 in |
| Type | Tin Plated, Standard Barrel |
| Conductor - Material | Copper |
| Rating - Minimum Voltage | 600 |
| Dimension - Stud Size inch | #10 |
| Voltage - Maximum | 35000 |
| Beveled Entry | Yes |
| Center Spacing | 5/8 in |
| Bolt Hole | 8-10 in |
| Inspection Hole | Yes |
| Holes | 2 HOLE |
| Barrel | Short |
| Package Quantity | 1 |
