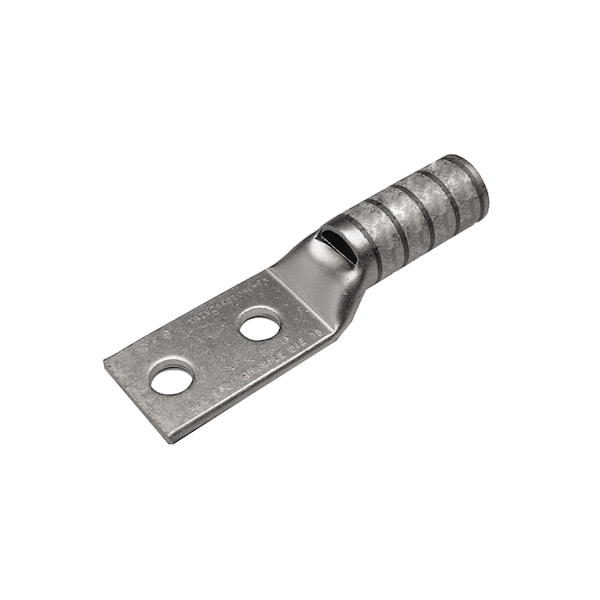

2 AGUJEROS FLEXIBLES DE VARILLA LARGA, 4/0 AWG 3/8" AGUJERO DE PERNO 1", ESPACIAMIENTO ROHS
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Length | 3.96 in |
| Color Code | Purple |
| Conductor - Copper Flex H Size | 4/0 AWG |
| Conductor - Copper Flex H Size Range | 4/0 AWG |
| Dimension - Length Side B inch | 3.96 in |
| Application | For Flex Conductors |
| Dimension - Length Overall inch | 3.96 in |
| Dimension - L Length Overall mm | 101 mm |
| Dimension - Hole Size inch | 0.4 in |
| Dimension - N inch | 0.41 in |
| Dimension - Bolt Size fraction | 44993 |
| Rating - Minimum Voltage | 600 |
| Plating Type | Tin |
| Conductor - Copper DLO Size Range | 4/0 (550/#24) DLO |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Strip Length inch | 42380 |
| Feature - Barrel Type | Long |
| Conductor - Copper Flex I Size Range | 4/0 AWG |
| Die Index | 15 |
| Bolt Size | 3/8 in |
| Conductor - CopperWeld Str Size Range | 4/0 E AWG-4/0 V AWG |
| Conductor - Copper Flex K Size Range | 4/0 AWG |
| Conductor - Copper Flex G Size Range | 4/0 AWG |
| Dimension - B Length fraction | 1-5/8 in |
| Type | Long Barrel, Skive |
| Dimension - Outside Diameter inch | 0.77 in |
| Conductor - CopperWeld Str Size | 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Conductor - Copper Flex I Size | 4/0 AWG |
| Dimension - Z inch | 0.43 in |
| Dimension - Pad Width inch | 1.14 in |
| Feature - Barrel Style | Skived |
| Rating - KVA | 35 kV |
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Conductor - Copper Str Size | 4/0 AWG |
| Certification - CSA Approved | Yes |
| Physical Attribute - Number of Holes | 2 |
| Dimension - Hole Size mm | 10 mm |
| Voltage - Maximum | 35000 |
| Conductor - Copper Flex G Size | 4/0 AWG |
| Outside Diameter | 0.77 in |
| Dimension - B Length inch | 1.62 in |
| Conductor - Material | Copper |
| Plated | Y |
| Conductor - Copper Flex M Size Range | 4/0 AWG |
| Package Quantity | 1 |
