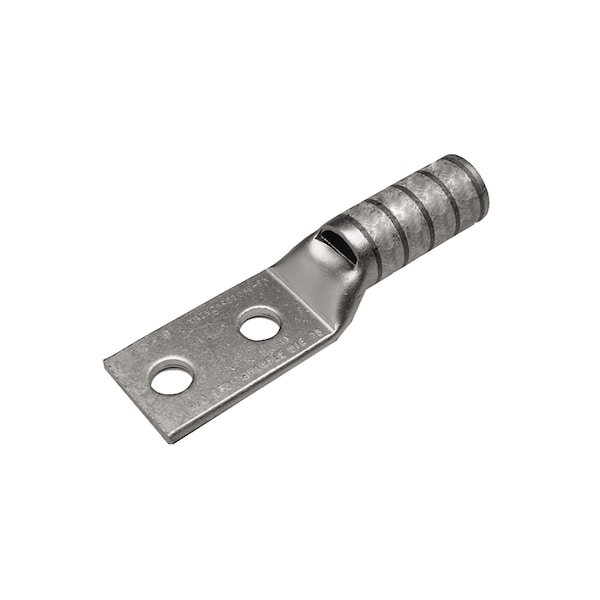

LUG DE 2 AGUJEROS LARGO BRL 1/0 AWG FL, 1/4" TORNILLO 5/8" CNTR, AGUJERO DE INSPECCIÓN.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Pink |
| Dimension - Hole Size inch | 0.27 in |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length fraction | 1-1/2 in |
| Dimension - Z inch | 0.34 in |
| Voltage - Maximum | 35000 |
| Dimension - N inch | 0.31 in |
| Dimension - Hole Size mm | 7 mm |
| Application | For Flex Conductors |
| Rating - Minimum Voltage | 600 |
| Dimension - B Length inch | 1-1/2 in |
| Type | Long Barrel, Skive |
| Dimension - L Length Overall mm | 81 mm |
| Physical Attribute - Number of Holes | 2 |
| Conductor - Copper Str Size | 36526 |
| Rating - KVA | 35 kV |
| Conductor - Material | Copper |
| Conductor - Copper Flex H Size | 1/0 AWG |
| Dimension - Strip Length inch | 42378 |
| Conductor - Copper Flex I Size | 1/0 AWG |
| Dimension - Bolt Size fraction | 44930 |
| Conductor - Copper Flex G Size | 1/0 AWG |
| Dimension - Length Overall inch | 3.2 in |
| Feature - Barrel Type | Long |
| Certification - CSA Approved | Yes |
| Plating Type | Tin |
| Conductor - Copper Flex K Size | 1/0 AWG |
| Dimension - Pad Width inch | 0.83 in |
| Die Index | 12;348 |
| Dimension - Outside Diameter inch | 0.56 in |
| Conductor - Copper DLO Size | 1/0 (275/#24) DLO |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Plated | Y |
| Conductor - Copper Flex M Size | 1/0 AWG |
| Dimension - Length Side B inch | 3.2 in |
| Conductor - CopperWeld Str Size | 1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG |
| Holes | 2 HOLE |
| Bolt Hole | 1/4 in |
| Lug Length X Tongue Width (In.) | 3.2 in x 0.83 in |
| Inspection Hole | Yes |
| Stud Hole Spacing (In.) | 5/8" |
| Package Quantity | 1 |
