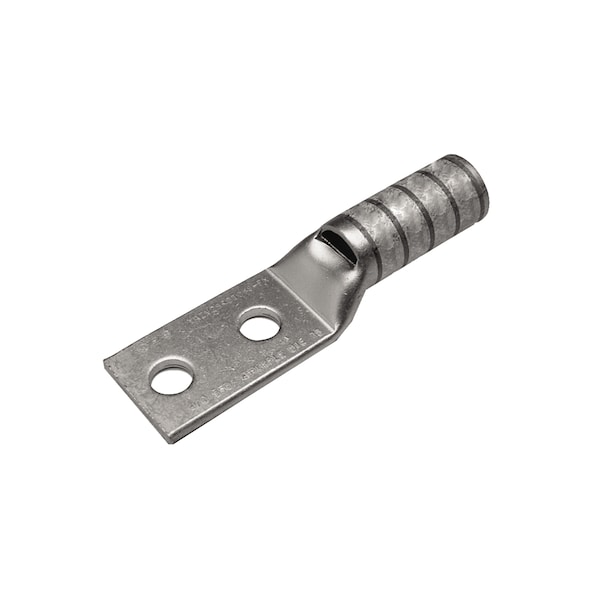

TERMINAL DE DOS ORIFICIOS LARGO BRL 750 KCMIL, TORNILLO DE 3/8" 1" CENTRO LENGÜETA ESTRECHA, ORIFICIO DE INSPECCIÓN
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Yellow |
| Gauge | 750KCMIL (AKA MCM) |
| Certification - CSA Approved | Yes |
| Dimension - Stud Size inch | 3/8 in |
| Dimension - B Length fraction | 3 in |
| Physical Attribute - Tongue Angle | Straight |
| Physical Attribute - Number of Holes | 2 |
| Dimension - Pad Width inch | 1.62 in |
| Conductor - Copper Flex H Size | 750 |
| Plating Type | Tin Electro Plated |
| Rating - KVA | 35 kV |
| Conductor - Copper Flex M Size | 750 |
| Type | Barrel Narrow Tongue, YAZ-2-NTFX |
| Dimension - N inch | 1/2 in |
| Feature - Barrel Style | Chamfered |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Length Overall inch | 6.09 in |
| Dimension - Length Side B inch | 6.08 in |
| Conductor - Copper Str Size | 750 kcmil |
| Dimension - Outside Diameter inch | 1-1/2 in |
| Feature - Barrel Type | Long |
| Conductor - Copper Flex K Size | 750 |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Flex G Size | 750 |
| Dimension - Diameter Min Size inch | 2.03 in |
| Dimension - Z inch | 0.53 in |
| Conductor - Copper Str Size Range | 750 kcmil |
| Dimension - B Length inch | 3 in |
| Conductor - Copper DLO Size | 777.7 (1925/#24) |
| Dimension - Bolt Size fraction | 44993 |
| Plated | Y |
| Voltage - Maximum | 35000 |
| Dimension - Strip Length inch | 42430 |
| Dimension - L Length Overall mm | 155 mm |
| Conductor - Copper Flex I Size | 750 |
| Application | For Flex Conductors |
| Die Index | L115 |
| Inspection Hole | Yes |
| Stud Hole Spacing (In.) | 1 in |
| Bolt Hole | 3/8 in |
| Holes | 2 HOLE |
| Package Quantity | 1 |
