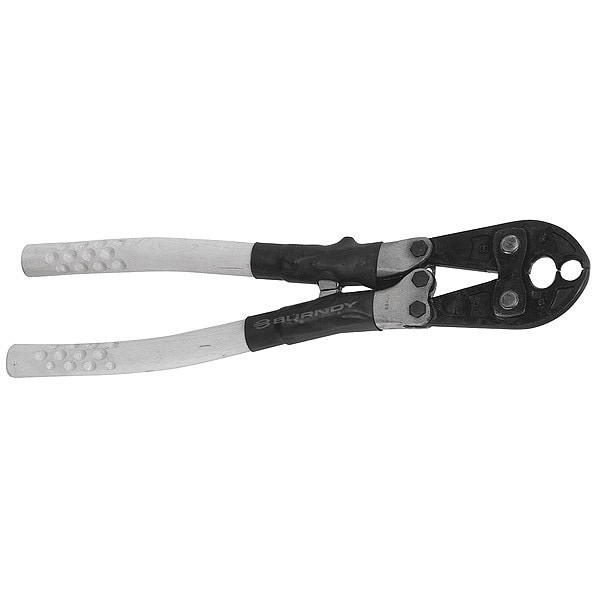

25 3/8 in Crimper 14 to 4/0 AWG
| Item | Crimper |
|---|---|
| Capacity | 14 to 4/0 AWG |
| Overall Length | 25-3/8 in |
| Handle Type | Molded |
| Insulated | No |
| Application | Tooling |
| Features | Spring-Loaded |
| Material | PTFE Impregnated Steel/Bronze Bushings and Stainless Steel Pins |
| Cuts | No |
| Finish | Nickel Plated |
| Adjustable | Manual |
| Strips | No |
| Width | 7.04 in |
| Handle Material | Polymer |
| Primary Crimping Application | Electrical Wire and Cable |
| Standards | RoHS Compliant |
| Max. Crimping Force | 9,000 lb |
| Insulated / Uninsulated | Uninsulated |
| Replacement Die Code | None |
| For Use With | Copper, Aluminum, ACSR, Copperweld, Alumoweld, Steel, 6201 5005, Compressed and Compact Conductors, Copper Taps: #10 sol. - 2/0 str., Aluminum, ACSR Taps: #14 sol. - 4/0 ACSR, Stirrups: #6 ACSR - 4/0 ACSR, Overhead Full Tension Deadend, Full Tension Splices, Non Tension Splices, and Terminals Conductor Range: #10 str. - 4/0 ACSR, Code conductor connectors: #6 - 4/0 str. Copper and Aluminum |
| Type | Commercial |
| Tool Length | 25-3/8 in |
| Tool Weight | 6 lb |
| Maximum Crimping Capacity - Copper Lug | 2/0 AWG |
| Includes Crimping Die | No |
| Compatible Cable Type | ACSR |
| Maximum Compatible Wire Size | 500 kcmil |
| Crimping Capacity - Copper Lug | 1 AWG, 1/0 AWG, 10 AWG, 2 AWG, 2/0 AWG, 4 AWG, 6 AWG, 8 AWG |
| Grip Style | Standard Cushion |
| Compatible Terminal Type | ACSR |
| Crimping Capacity - Aluminum Lug | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG |
| Crimper Style | Hand-Operated Crimper |
| Maximum Crimping Capacity - Aluminum Lug | 6 AWG |
| Replacement Die Part Number | None |
| Maximum Crimping Capacity | 4/0 AWG |
| Crimping Capacity | 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 6 AWG4, 8 AWG, AWG |
| Includes Wire Cutter | No |
| Minimum Crimping Capacity - Copper Lug | 10 AWG |
| Minimum Crimping Capacity - Aluminum Lug | 4/0 AWG |
| Adjustability | Manual |
| Includes Wire Stripper | No |
| Minimum Crimping Capacity | 14 AWG |
| Body Material | Bronze, Stainless Steel ; Steel ; PTFE Impregnated Steel |
| Compatible Connector Type | C-Taps, Compression Lugs, Compression Splices |
| Maximum Crimping Force | 4.5 ton |
| Minimum Compatible Wire Size | 14 AWG |
| Package Quantity | 1 |
