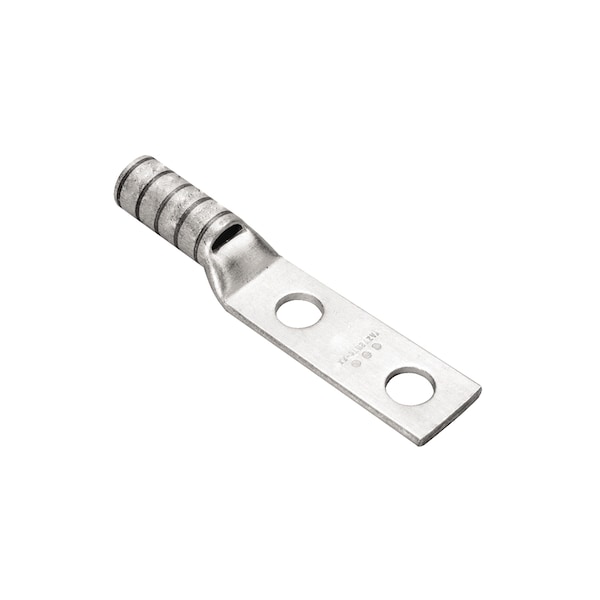

2H FLEX LUG STND BRL, #2 STR/#2 SOL 1/4"STUD 5/8"CTR, INSPECCIÓN DE RESIDUOS DE PLOMO DE COLOR MARRÓN
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Brown |
| Dimension - L Length Overall mm | 57 mm |
| Conductor - Material | Copper |
| Conductor - Copper Flex H Size | 2 AWG |
| Type | Tin Plated, Standard Barrel |
| Dimension - B Length inch | 0.63 in |
| Dimension - Hole Size mm | 7 mm |
| Die Index | 10 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length fraction | 5/8 in |
| Dimension - Length Overall inch | 2.26 in |
| Conductor - Copper DLO Size | 3 (125/#24) DLO;2 (150/#24) DLO |
| Dimension - N inch | 0.31 in |
| Dimension - Outside Diameter inch | 0.46 in |
| Plated | Y |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Voltage - Maximum | 35000 |
| Rating - KVA | 35 kV |
| Certification - CSA Approved | Yes |
| Conductor - Copper Str Navy Size | 60 (37) Navy |
| Application | For Flex Conductors |
| Conductor - Copper Flex M Size | 2 AWG |
| Conductor - CopperWeld Str Size | 2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG |
| Conductor - Copper Flex I Size | 2 AWG |
| Dimension - Pad Width inch | 0.68 in |
| Physical Attribute - Number of Holes | 2 |
| Conductor - Copper Solid Size | 2 AWG |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Plating Type | Tin Electro Plated |
| Dimension - Strip Length inch | 45246 |
| Dimension - Z inch | 0.34 in |
| Physical Attribute - Tongue Type | Standard |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Flex K Size | 2 AWG |
| Dimension - Hole Size inch | 0.27 in |
| Conductor - Copper Flex G Size | 2 AWG |
| Conductor - Copper Str Size | 2 AWG |
| Stud Hole Size (In.) | 1/4" |
| Bolt Hole | 1/4 in |
| Inspection Hole | Yes |
| Lug Length X Tongue Width (In.) | 2.26 in x 0.68 in |
| Holes | 2 HOLE |
| Stud Hole Spacing (In.) | 5/8" |
| Center Spacing | 5/8 in |
| Package Quantity | 1 |
