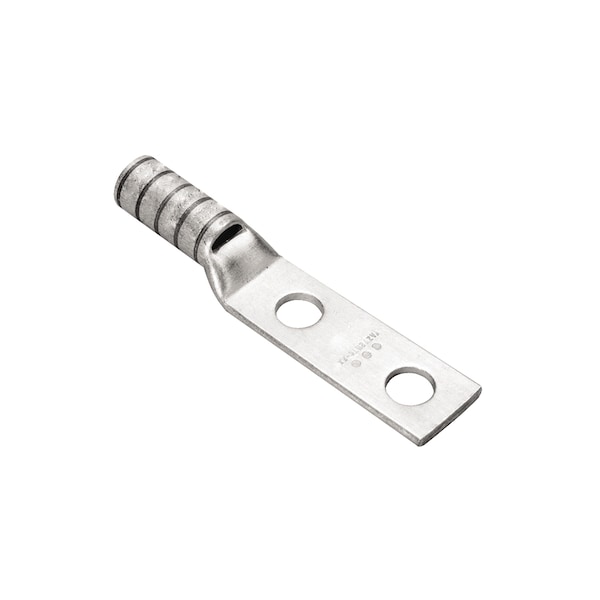

2H FLEX LUG STND BRL, #4 STR/#4 SOL 1/4"STUD 5/8"CTR, INSP WIND GRY ROHS
Abrazadera flexible estándar 2H, #4 cableado / #4 solido, con perno de 1/4" y centro de 5/8", inspección resistente al viento, color gris, cumplimiento con la directiva ROHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Gray |
| Dimension - Outside Diameter inch | 0.38 in |
| Conductor - Copper DLO Size | 5 (91/#24) DLO;4 (105/#24) DLO |
| Dimension - Pad Width inch | 0.55 in |
| Feature - Barrel Type | Standard |
| Conductor - Copper Str Size | 4 AWG |
| Rating - KVA | 35 kV |
| Feature - Barrel Style | Chamfered |
| Rating - Minimum Voltage | 600 |
| Dimension - Z inch | 0.34 in |
| Dimension - N inch | 0.31 in |
| Dimension - Hole Size inch | 0.27 in |
| Die Index | 8;346 |
| Conductor - Copper Flex I Size | 4 AWG |
| Conductor - Material | Copper |
| Voltage - Maximum | 35000 |
| Conductor - Copper Flex K Size | 4 AWG |
| Conductor - Copper Flex M Size | 4 AWG |
| Dimension - Hole Size mm | 7 mm |
| Certification - CSA Approved | Yes |
| Physical Attribute - Tongue Angle | Straight |
| Conductor - Copper Str Navy Size | 40 (19) Navy;50 (19) Navy |
| Application | For Flex Conductors |
| Dimension - Strip Length inch | 45185 |
| Dimension - L Length Overall mm | 53 mm |
| Conductor - Copper Flex H Size | 4 AWG |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - B Length inch | 1/2 in |
| Conductor - Copper Solid Size | 4 AWG |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin Electro Plated |
| Physical Attribute - Number of Holes | 2 |
| Type | Tin Plated, Standard Barrel |
| Plated | Yes |
| Dimension - Length Overall inch | 2.08 in |
| Conductor - Copper Flex G Size | 4 AWG |
| Conductor - CopperWeld Str Size | 4 A AWG;4 D AWG;4 N AWG;4 P AWG |
| Stud Hole Size (In.) | 1/4" |
| Center Spacing | 5/8 in |
| Beveled Entry | Yes |
| Bolt Hole | 1/4 in |
| Stud Hole Spacing (In.) | 5/8" |
| Holes | 2 HOLE |
| Lug Length X Tongue Width (In.) | 2.08 in x 0.55 in |
| Inspection Hole | Yes |
| Package Quantity | 1 |
