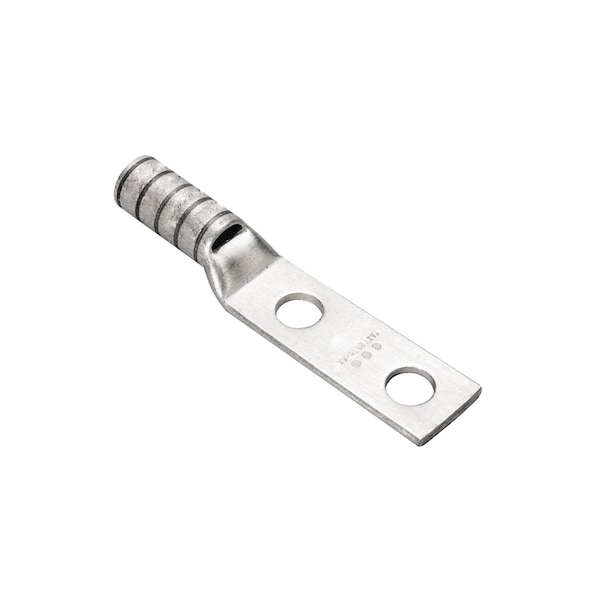

2H FLEX LUG STND BRL, #4 STR/#4 SOL 3/8" STUD 1"CTR, INSP WIND GRY ROHS
Abrazadera flexible estándar de bronce, calibre #4 para conductor con alma de calibre #4, tornillo de 3/8" y centro de 1", color gris aprobado por RoHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Gray |
| Conductor - Copper Str Size | 4 AWG |
| Dimension - Length Overall inch | 2.68 in |
| Dimension - L Length Overall mm | 68 mm |
| Dimension - Bolt Hole Size inch | 0.4 in |
| Feature - Barrel Type | Standard |
| Rating - Minimum Voltage | 600 |
| Die Index | 8;346 |
| Dimension - Hole Size inch | 0.4 in |
| Conductor - Copper DLO Size | 5 (91/#24) DLO;4 (105/#24) DLO |
| Dimension - Outside Diameter inch | 0.38 in |
| Conductor - Material | Copper |
| Conductor - Copper Solid Size | 4 AWG |
| Dimension - Z inch | 0.43 in |
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin Electro Plated |
| Certification - CSA Approved | Yes |
| Conductor - Copper Flex K Size | 4 AWG |
| Feature - Barrel Style | Chamfered |
| Conductor - Copper Flex M Size | 4 AWG |
| Type | Tin Plated, Standard Barrel |
| Rating - KVA | 35 kV |
| Conductor - Copper Flex G Size | 4 AWG |
| Physical Attribute - Tongue Angle | Straight |
| Application | For Flex Conductors |
| Dimension - B Length inch | 1/2 in |
| Dimension - Strip Length inch | 9/16 in |
| Physical Attribute - Tongue Type | Standard |
| Conductor - CopperWeld Str Size | 4 A AWG;4 D AWG;4 N AWG;4 P AWG |
| Conductor - Copper Flex H Size | 4 AWG |
| Dimension - Pad Width inch | 0.58 in |
| Plated | Yes |
| Voltage - Maximum | 35000 |
| Dimension - Hole Size mm | 10 mm |
| Dimension - N inch | 0.41 in |
| Conductor - Copper Flex I Size | 4 AWG |
| Conductor - Copper Str Navy Size | 40 (19) Navy;50 (19) Navy |
| Bolt Hole | 3/8 in |
| Lug Length X Tongue Width (In.) | 2.68 in x 0.58 in |
| Center Spacing | 1 in |
| Beveled Entry | Yes |
| Inspection Hole | Yes |
| Stud Hole Spacing (In.) | 1 in |
| Stud Hole Size (In.) | 3/8" |
| Holes | 2 HOLE |
| Package Quantity | 1 |
