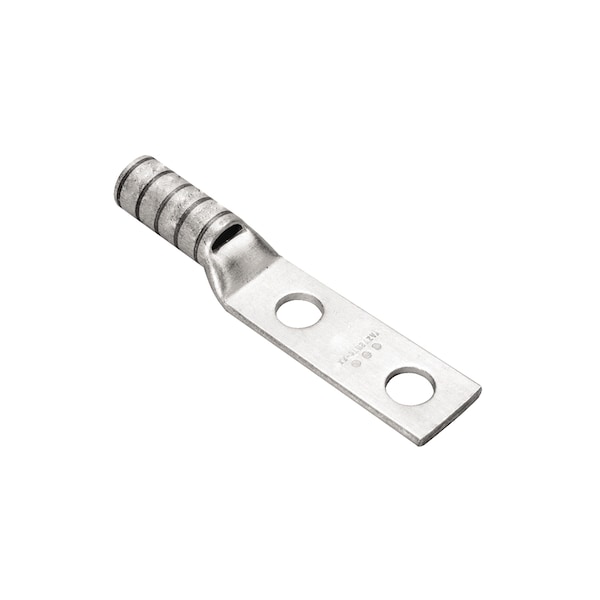

2H FLEX LUG STND BRL, 4/0 STR 3/8" STUD 1" CTR, INSP WIND YEL ROHS
Conector de cable flexible estándar 2H, 4/0 cableado, tornillo de 3/8" y centro de 1", color amarillo a prueba de impacto.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Yellow |
| Dimension - Thread Size | 44993 |
| Dimension - Hole Size inch | 0.41 in |
| Voltage - Maximum | 35000 |
| Dimension - Strip Length inch | 42370 |
| Physical Attribute - Number of Holes | 2 |
| Dimension - B Length inch | 1.03 in |
| Dimension - Z inch | 0.43 in |
| Conductor - Copper Flex G Size | 4/0 AWG |
| Conductor - Copper Flex I Size | 4/0 AWG |
| Dimension - L Length Overall mm | 87 mm |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 3.43 in |
| Conductor - Copper Flex H Size | 4/0 AWG |
| Dimension - Bolt Size fraction | 44993 |
| Dimension - B Length fraction | 1 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Rating - KVA | 35 kV |
| Certification - CSA Approved | Yes |
| Rating - Minimum Voltage | 600 |
| Conductor - Material | Copper |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Feature - Barrel Type | Standard |
| Dimension - N inch | 0.41 in |
| Conductor - CopperWeld Str Size | 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG |
| Dimension - Outside Diameter inch | 0.8 in |
| Dimension - Pad Width inch | 1.18 in |
| Feature - Barrel Style | Chamfered |
| Plating Type | Tin Electro Plated |
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
| Conductor - Copper Str Size | 250 kcmil |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Type | Tin Plated, Standard Barrel |
| Plated | Y |
| Application | For Flex Conductors |
| Die Index | 16 |
| Inspection Hole | Yes |
| Beveled Entry | Yes |
| Holes | 2 HOLE |
| Center Spacing | 1 in |
| Bolt Hole | 3/8 in |
| Package Quantity | 1 |
