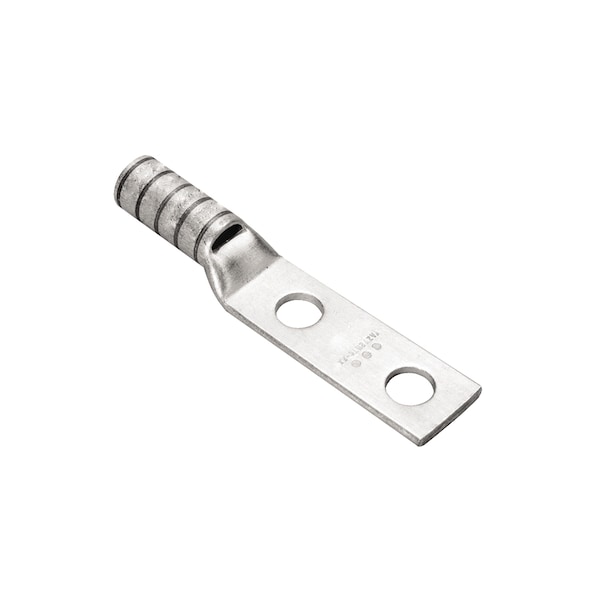

2H FLEX LUG STND BRL, #6 STR/#6 SOL #10 STUD 5/8"CTR, INSP WIND BLU ROHS
Conector flexible de estándar para barril, calibre #6/cable sólido #6/tornillo #10 de 5/8" de centro, inspeccionado en azul resistente a sustancias peligrosas (ROHS).
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Blue |
| Conductor - Copper DLO Size Range | 6 (61/24) DLO |
| Conductor - Copper Flex G Size | 6 AWG |
| Conductor - Copper Solid Size Range | 6 AWG |
| Dimension - Hole Size inch | 0.21 in |
| Dimension - N inch | 1/4 in |
| Type | Tin Plated, Standard Barrel |
| Dimension - Z inch | 0.26 in |
| Conductor - CopperWeld Str Size Range | #6 WELD (61/24) |
| Conductor - CopperWeld Str Size | #6 WELD (61/24) |
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper Str Size | 6 AWG |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Dimension - Hole Size mm | 5 mm |
| Physical Attribute - Tongue Type | Standard |
| Dimension - B Length inch | 1/2 in |
| Dimension - B Length fraction | 1/2 in |
| Dimension - L Length Overall mm | 49 mm |
| Conductor - Copper Str Size Range | 6 AWG |
| Conductor - Copper Flex I Size Range | 6 AWG |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Flex I Size | 6 AWG |
| Dimension - Bolt Hole Size inch | 0.21 in |
| Conductor - Copper Flex G Size Range | 6 AWG |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Outside Diameter inch | 0.31 in |
| Dimension - Strip Length inch | 9/16 in |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Flex H Size Range | 6 AWG |
| Conductor - Copper Str Navy Size | 30 Navy |
| Conductor - Copper Solid Size | 6 AWG |
| Rating - KVA | 35 kV |
| Dimension - Pad Width inch | 0.45 in |
| Physical Attribute - Number of Holes | 2 |
| Dimension - Length Overall inch | 1.94 in |
| Plating Type | Tin Electro Plated |
| Conductor - Copper Str Navy Size Range | 30 Navy |
| Die Index | 7;374 |
| Plated | Y |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size | 6 (61/24) DLO |
| Voltage - Maximum | 35000 |
| Application | For Flex Conductors |
| Certification - CSA Approved | Yes |
| Feature - Barrel Type | Standard |
| Conductor - Copper Flex K Size Range | 6 AWG |
| Stud Hole Spacing (In.) | 5/8" |
| Stud Hole Size (In.) | 10 |
| Bolt Hole | 10MM |
| Holes | 2 HOLE |
| Center Spacing | 5/8 in |
| Lug Length X Tongue Width (In.) | 1.94 in x 0.44 in |
| Inspection Hole | Yes |
| Package Quantity | 1 |
