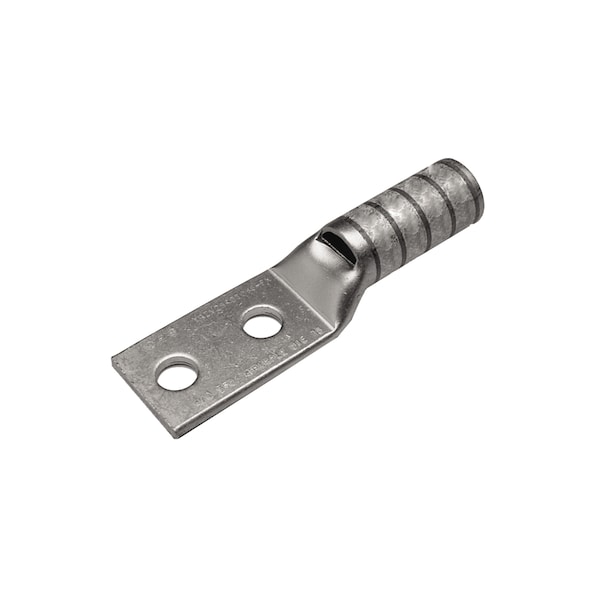

Perno de orejeta estándar de 2H, #14-10STR / #12-10SOL, estribo de 1/4", 3/4" centro, viento de inspección.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Plating Type | Tin Electro Plated |
| Conductor - Copper Str Size Range | 14 AWG-10 AWG |
| Application | For Code Conductor |
| Rating - Minimum Voltage | 600 |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - L Length Overall mm | 50 mm |
| Voltage - Maximum | 35000 |
| Dimension - D inch | 1.39 in |
| Temperature Rating | 194 |
| Conductor - Copper Solid Size | 12 AWG;11 AWG;10 AWG |
| Conductor - Copper Str Navy Size | 3 (7) Navy;4 (1) Navy;4 (7) Navy;4 (19) Navy;4 (41) Navy;6 (7) Navy;6 (19) Navy;9 (7) Navy;9 (37) Navy |
| Dimension - Length Overall inch | 1.97 in |
| Dimension - Pad Width inch | 0.41 in |
| Dimension - Outside Diameter inch | 0.21 in |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG |
| Physical Attribute - Tongue Angle | Straight |
| Type | Tin Plated, Standard Barrel |
| Dimension - Stud Size inch | 44930 |
| Conductor - Copper Str Navy Size Range | 3 (7) Navy-9 (37) Navy |
| Certification - CSA Approved | Yes |
| Conductor - Copper Solid Size Range | 12 AWG-10 AWG |
| Dimension - Strip Length inch | 45123 |
| Conductor - Material | Copper |
| Dimension - B Length fraction | 3/8 in |
| Physical Attribute - Tongue Type | Standard |
| Dimension - N inch | 0.31 in |
| Plated | Y |
| Feature - Barrel Type | Standard |
| Feature - Barrel Style | Chamfered |
| Dimension - B Length inch | 0.38 in |
| Dimension - Hole Size mm | 7 mm |
| Rating - KVA | 35 kV |
| Physical Attribute - Number of Holes | 2 |
| Dimension - Z inch | 0.33 in |
| Dimension - Hole Size inch | 0.27 in |
| Bolt Hole | 1/4 in |
| Inspection Hole | Yes |
| Holes | 2 HOLE |
| Package Quantity | 1 |
