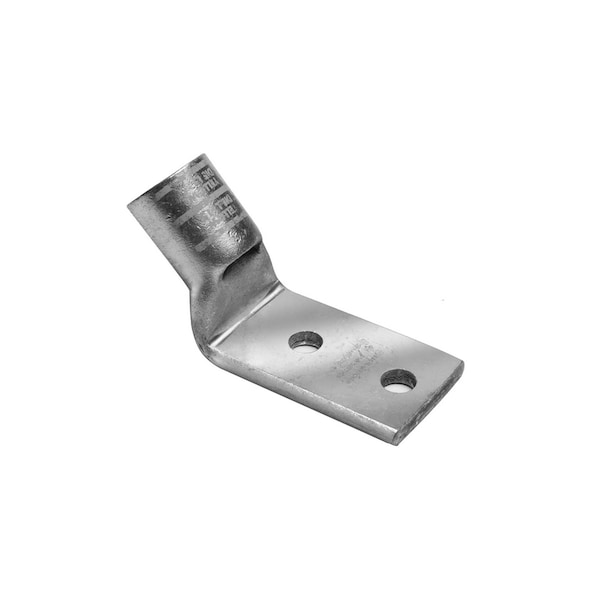

Abrazadera estándar de 2 agujeros, 45 grados, para tornillo de diámetro #6 y perno de diámetro #10, a 5/8" del centro, color azul con certificación RoHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Blue |
| Conductor - Material | Copper |
| Application | For Use On: UL Listed 90 DEG C, 600 Volts to 35kV, Code Conductor |
| Physical Attribute - Tongue Angle | 45 Degree |
| Conductor - Copper Str Size | 6 AWG |
| Voltage - Maximum | 35000 |
| Dimension - B Length inch | 0.54 in |
| Dimension - Stud Size inch | #10 |
| Type | Tin Plated, Standard Barrel |
| Standards - Industry Standards Met | UL468A-468B |
| Industry Standard(s) | UL468A-468B |
| Dimension - Pad Width inch | 0.42 in |
| Physical Attribute - Tongue Type | Standard |
| Dimension - B Length fraction | 9/16 in |
| Die Index | 7;374 |
| Physical Attribute - Number of Holes | 2 |
| Dimension - L Length Overall mm | 49 mm |
| Dimension - Z inch | 0.27 in |
| Dimension - Length Overall inch | 1.94 in |
| Dimension - Height inch | 0.78 in |
| Dimension - Hole Size inch | 0.21 in |
| Dimension - Outside Diameter inch | 0.29 in |
| Plated | Y |
| Dimension - Strip Length inch | 5/8 in |
| Certification - CSA Approved | Yes |
| Conductor - Copper Solid Size | 6 AWG |
| Dimension - Bolt Hole Size inch | 0.2 in |
| Plating Type | Tin Electro Plated |
| Dimension - N inch | 1/4 in |
| Rating - Minimum Voltage | 600 |
| Rating - KVA | 35 kV |
| Feature - Barrel Type | Standard |
| Dimension - Hole Size mm | 5 mm |
| Inspection Hole | Yes |
| Holes | 2 HOLE |
| Bolt Hole | 10MM |
| Package Quantity | 1 |
