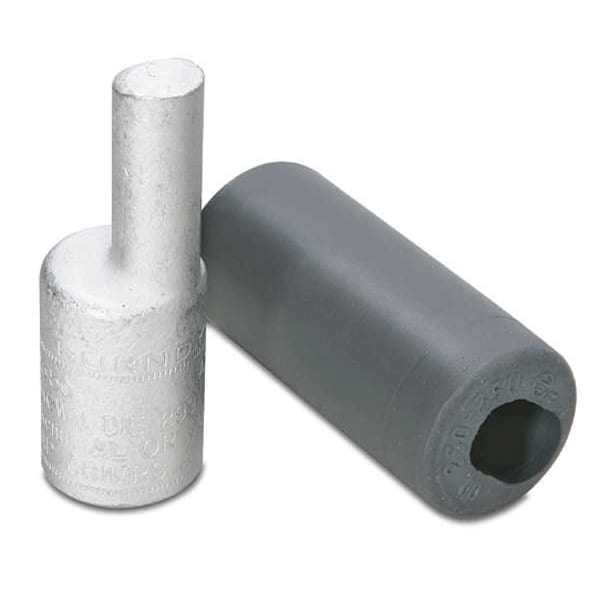

Adaptador de compensación, 0.86 pulgadas de ancho por 2.80 pulgadas de largo.
| Max. Voltage | 35 kv |
|---|---|
| Width | 0.86 in |
| Application | For Aluminum and Copper Conductors, Mechanical Connectors in Molded Case Circuit Breakers, Panel Board Equipment and Meter Sockets |
| Length | 2.8 in |
| Item | Offset Adapter |
| Max. Wire Size | 4/0 AWG |
| Diameter | 27/64 in |
| Min. Wire Size | 1 AWG |
| For Use With | Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V |
| Standards | CSA Approved; UL468A-468B; UL Listed |
| Max. Temp. | 194°F |
| Wire Range | 4/0 AWG Aluminum; 4/0 AWG Copper |
| Insulation Material | Rubber |
| Connection Material | Aluminum |
| Length (Straight Wireway) | 2.8 in |
| Die Code | 298 |
| Maximum Voltage | 35 kV |
| For Conductor Material | Copper, Aluminum |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Compatible Installation Tool Model Number | Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V |
| Barrel Length | 1.11 in |
| Contact Finish | Tin |
| Pin Length | 1.22 in |
| Color Code | White |
| Overall Length | 2.8 in |
| Pin Diameter | 0.422 in |
| Contact Material | Aluminum |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| Strip Length | 1-1/16 in |
| Connection Orientation | Offset |
| For Stranded Aluminum Wire Size - Maximum | 4/0 AWG |
| Pin Equivalent Wire Size | 2/0 AWG |
| Barrel Diameter | 0.86 in |
| Number of Crimps | 2 |
| Finish | Tin Plated |
| Material | Aluminum |
| Type | Pin Adapter |
| Insulated | Yes |
| Dimension - Length Overall inch | 2.8 in |
| Conductor - AL Str Size | 4/0 AWG |
| Equivalent Pin Size | 2/0 AWG |
| Conductor - AL Str Size Range | 4/0 AWG |
| Trade Name | HYPLUGâ„¢ |
| UL Listed | Yes |
| Certification - CSA Approved | Yes |
| Voltage - Maximum | 35000 V |
| Conductor - Copper DLO Size Range | 3/0 AWG |
| Conductor - Copper Str Size Range | 4/0 AWG |
| Voltage Rating | 35 kV |
| Finish Type | Tin-Plated |
| Conductor - Copper Flex I Size Range | 3/0 AWG |
| Industry Standard(s) | UL 486A-486B |
| Standards - Industry Standards Met | UL 486A-486B |
| Pin Type | Solid |
| Dimension - A Outside Diameter inch | 0.85 in |
| Package Quantity | 1 |
