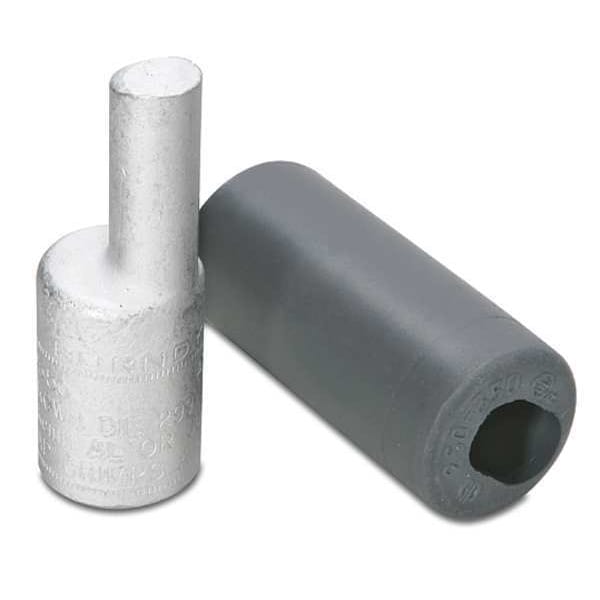

Adaptador de desplazamiento, 1.11 pulgadas de ancho x 2.98 pulgadas de largo.
| Max. Voltage | 35 kv |
|---|---|
| Width | 1.11 in |
| Application | For Aluminum and Copper Conductors, Mechanical Connectors in Molded Case Circuit Breakers, Panel Board Equipment and Meter Sockets |
| Length | 2.98 in |
| Diameter | 15/32 in |
| For Use With | Hytools Dieless Tools Hydraulic Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V |
| Max. Wire Size | 250 kcmil |
| Item | Offset Adapter |
| Min. Wire Size | 1/0 AWG |
| Wire Range | 250 kcmil Aluminum; 4/0 AWG Copper |
| Connector Type | OFFSET PIN |
| Insulation Type | Rubber |
| Standards | CSA Approved; UL468A-468B; UL Listed |
| Max. Temp. | 194°F |
| Insulation Material | Rubber |
| Connection Material | Aluminum |
| Length (Straight Wireway) | 2.98 in |
| Pin Length | 1.22 in |
| For Conductor Material | Copper, Aluminum |
| Barrel Diameter | 1.11 in |
| Pin Equivalent Wire Size | 3/0 AWG |
| Maximum Voltage | 35 kV |
| Overall Length | 2.98 in |
| Color Code | Brown |
| Pin Diameter | 0.469 in |
| Contact Finish | Tin |
| Number of Crimps | 2 |
| Compatible Installation Tool Model Number | Hytools Dieless Tools Hydraulic Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V |
| Connection Orientation | Offset |
| Die Code | 299 |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| For Stranded Copper Wire Size - Minimum | 250 kcmil |
| Contact Material | Aluminum |
| For Stranded Aluminum Wire Size - Maximum | 250 kcmil |
| Strip Length | 1-1/16 in |
| Barrel Length | 1.07 in |
| Terminal Type | Pin |
| Insulated | Yes |
| Finish | Tin Plated |
| Type | Pin Adapter |
| Material | Aluminum |
| Dimension - B Length fraction | 1-1/16 in |
| Dimension - B Outside Diameter inch | 0.47 in |
| UL Listed | Yes |
| Standards - Industry Standards Met | UL 486A-486B |
| Conductor - AL Str Size Range | 250 kcmil |
| Industry Standard(s) | UL 486A-486B |
| Voltage - Maximum | 35000 V |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Conductor - Copper Flex I Size Range | 4/0 AWG |
| Conductor - Copper Str Size Range | 250 kcmil |
| Wire Size | 250 KCMIL |
| Pin Type | Solid |
| Conductor - Copper Flex K Size Range | 4/0 AWG |
| Plated | Yes |
| Insulation | Y |
| Dimension - Strip Length inch | 1-1/8 in |
| Conductor - Copper Str Size | 250 KCMIL |
| Finish Type | Tin-Plated |
| Conductor - Copper Str Compact Size | 250 KCMIL |
| Dimension - B Length inch | 1.07 in |
| Temperature Rating | 194 |
| Trade Name | HYPLUGâ„¢ |
| Dimension - A Outside Diameter inch | 1.1 in |
| Equivalent Pin Size | 3/0 AWG |
| Conductor Type | CODE, FLEX |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Voltage Rating | 35 kV |
| Conductor Size | 250 KCMIL |
| Conductor - Copper Flex I Size | 250 KCMIL |
| Physical Attribute - Number of Crimps Required | 2 |
| Plating Type | Tin |
| Conductor - Material | ALUMINUM / COPPER |
| Conductor - Copper DLO Size Range | 4/0 AWG |
| Dimension - Length Overall inch | 2.98 in |
| Dimension - L Length Overall mm | 76 mm |
| Dimension - P inch | 1.22 in |
| Certification - CSA Approved | Yes |
| Conductor - AL Str Size | 250 KCMIL |
| Conductor - Copper DLO Size | 4/0 AWG |
| Die Index | 299 |
| Package Quantity | 5 |
