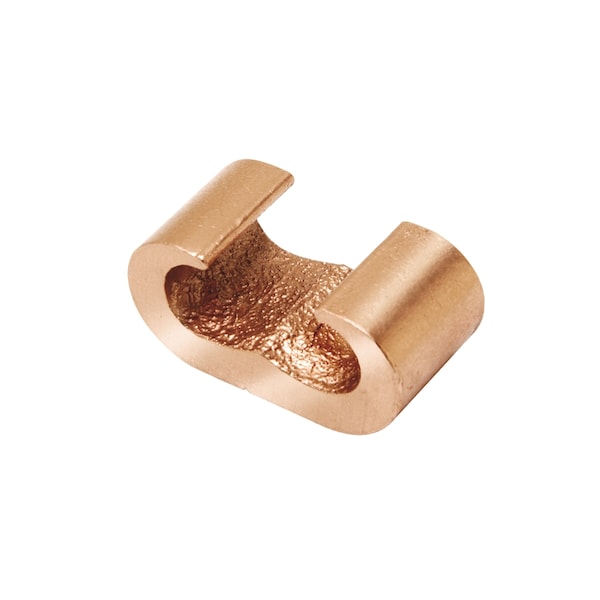

C TAP COBRE HYTAP, 3/0-250 CORRER 6-2/0 TAP, ROHS
| Material | Copper |
|---|---|
| Connection Type | COMPRESSION |
| Connector Type | Connectors Taps |
| Conductor - Copper Str Run | 3/0 AWG;4/0 AWG;250 kcmil |
| Certification - CSA Approved | Yes |
| Physical Attribute - Number of Crimps Required | 1 |
| Certification - UL Listed Direct Burial | Yes |
| Type | Taps |
| Application | For Direct Burial Cables |
| Conductor - Copper Str Tap | 7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Rod Run | 1/2 in;5/8 in |
| Conductor - Copper Solid Tap | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG |
| Dimension - Height fraction | 1-32/33 in |
| Conductor - Copper Solid Tap Range | 6 AWG-3/0 AWG |
| Plating Type | Unplated |
| Dimension - Length Overall inch | 3/4 in |
| Dimension - B Length fraction | 3/4 in |
| Plated | N |
| Die Index | 997 |
| Conductor - Rod Run Range | 1/2 in-5/8 in |
| Conductor - Copper Str Tap Range | 7 AWG-2/0 AWG |
| UL Listed | Yes |
| Conductor - Copper Str Run Range | 3/0 AWG-250 kcmil |
| Component | Compression Taps |
| Package Quantity | 1 |
