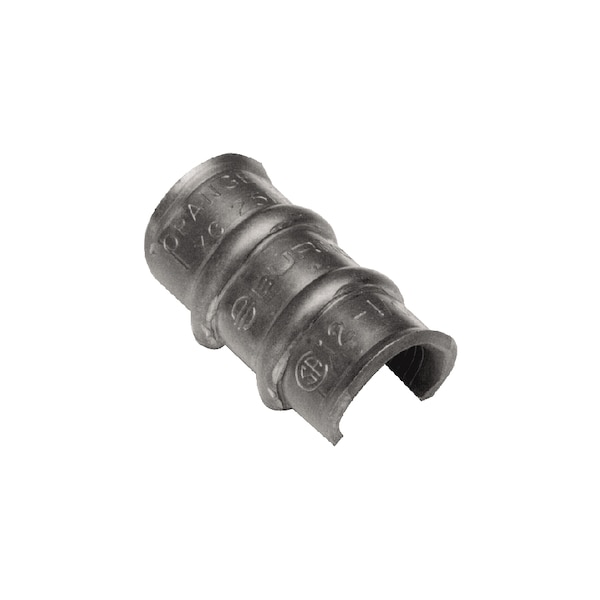

C-TAP DE PARED DELGADA DE COBRE, CONEXIÓN DE 2-1/0 A 3-2 4-3 12-4, COLOR NARANJA
| Material | Copper |
|---|---|
| Connection Type | COMPRESSION |
| Color Code | Orange |
| Connector Type | C-Tap |
| Conductor - Copper Solid Tap Range | 12 AWG-2 AWG |
| Conductor - Copper Str Run | 2 AWG;1 AWG;1/0 |
| Conductor - Copper Str Run Range | 2 AWG-1/0 |
| Conductor - Copper Str Tap | 12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Standards - Industry Standards Met | UL467 |
| Die Index | 14 |
| Conductor - Copper Solid Run | 2 AWG;1 AWG;1/0 AWG |
| Conductor - Copper Str Tap Range | 12 AWG-2 AWG |
| Conductor - Copper Solid Run Range | 2 AWG-1/0 AWG |
| Conductor - Copper Solid Tap | 12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Plating Type | Tin - Bright |
| Dimension - B Length fraction | 5/8 in |
| Dimension - Strip Length inch | 42382 |
| Voltage - Maximum | 35000 |
| Dimension - D inch | 1.75 in |
| Plated | Y |
| Type | YC-L Series |
| Rating - Minimum Voltage | 600 |
| Application | For Making Copper Tap And Parallel Connections |
| Rating - KVA | 35 kV |
| Temperature Rating | 194 |
| Industry Standard(s) | UL467 |
| Certification - CSA Approved | Yes |
| Dimension - Pad Width inch | 0.42 in |
| UL Listed | Yes |
| Component | Compression Taps |
| Package Quantity | 1 |
