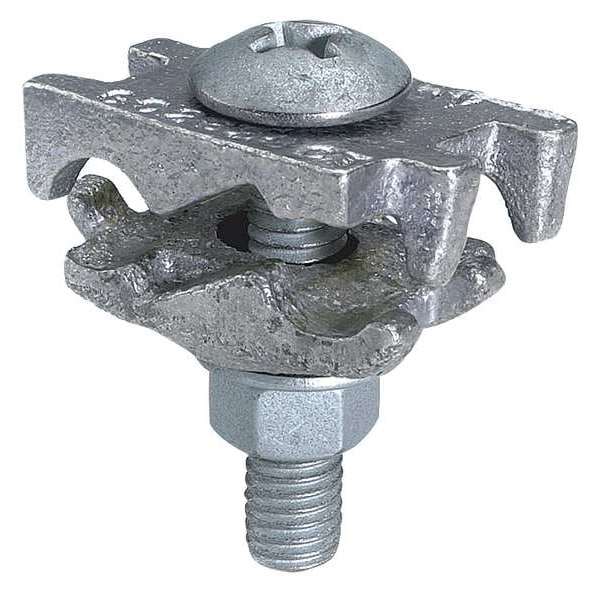

Cabletray Ground Clamp, 2AWG, 1.95In
| Item - Grounding Connector | Cable Tray Grounding Connector |
|---|---|
| Item | Cable Tray Grounding Connector |
| Type | COMMERCIAL |
| Type - Grounding Connector | Mechanical |
| Wire Size - Grounding | 2 to 2/0 AWG |
| Material | Copper |
| Grounding Wires Connected To | Cable Tray |
| Standards | UL Listed Direct Burial, UL467 |
| Material - Grounding Connector | Copper Alloy |
| Number of Wires - Grounding | 2 |
| Conductor Size | 2/0 AWG to 2 AWG |
| Material of Construction | Copper Alloy |
| For Use With | Aluminum Conductor, Cable Tray, Copper Conductors, Flat Bar |
| Package Quantity | 1 |
| Description/Special Features | Direct Burial, Ribbed Neck Bolt |
| Grounding Wire Size | 2 to 2/0 AWG SOL, 2 to 2/0 AWG STR |
| Torque | 240 in-lb |
| Accessory Type | Ground Clamp |
| Overall Width | 1-11/16 in |
| Overall Length | 1-1/8 in |
| For Minimum Ground Conductor Wire Size | 4 AWG SOL |
| For Maximum Ground Conductor Wire Size | 2/0 AWG STR |
| Overall Height | 1-15/16 in |
| Application | For Direct Burial Applications In Concrete Or Earth And For Used With Aluminum Or Galvanized Steel Cable Tray |
| Dimension - Width inch | 1.7 in |
| Conductor - Copper Str Size Range | 2 AWG-2/0 AWG |
| Dimension - B Length inch | 1.12 in |
| Plating Type | Tin |
| Dimension - Width mm | 43 mm |
| Plated | Y |
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Solid Size Range | 2 AWG-2/0 AWG |
| Conductor - Copper Solid Size | 2 AWG;1 AWG;1/0 AWG;2/0 AWG |
| Dimension - Cross Flats inch | 0.56 in |
| Conductor - AL Str Size | 2 AWG;1 AWG;1/0 AWG;2/0 AWG |
| Dimension - Height inch | 1.95 in |
| Certification - UL Listed Direct Burial | Yes |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Standards - Industry Standards Met | UL467 |
| UL Listed | Yes |
| Conductor - AL Str Size Range | 2 AWG-2/0 AWG |
| Industry Standard(s) | UL467 |
