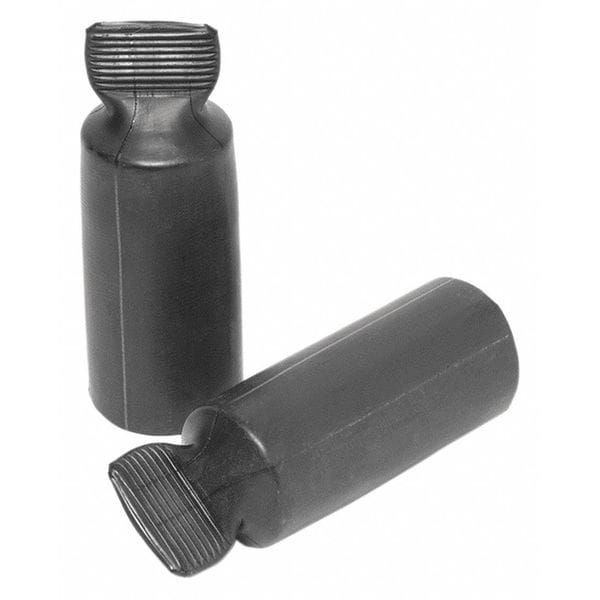

End Cap, Heat Shrink Tube, 4-4/0kcmil, PK10
| Shrink Ratio | 0.1257 |
|---|---|
| Material | Cross-linked Polyolefin |
| Color | Black |
| Application | For Used To Insulating Exposed Conductors In Energized Applications |
| Length - Recovery | 2.5 |
| Product Description | Black Polyolefin Heavy Wall Heat Shrinkable End Cap, #4 - 4/0(Code) #4 - 2/0(Flex), 600V |
| Code Wire Range | #4-4/0 |
| Expansion Length | 3.5 |
| Dimension (Max Before Shrink) | 0.75 |
| Recovery - Max ID | 0.24 |
| UL Listed | Y |
| Wall Thickness - Exp | 0.03 |
| Wall Thickness - Recovery | 0.08 |
| Flex Wire Range | #4-2/0 |
| Conductor Range | #4 AWG to #2/0 AWG |
| Connector Type | HEAVY WALL END CAP |
| Conductor Size | 4AWG - 4/0AWG |
| Type | Fire Retardant, Heavy Wall, HSIC-FR |
| Package Quantity | 10 |
