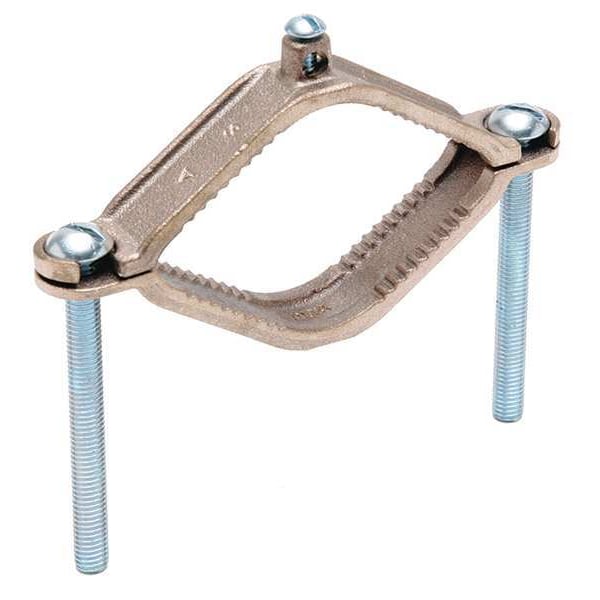

Ground Connector, 10AWG, 2.25In, PK5
| Item | Grounding Connector |
|---|---|
| Material | Zinc |
| Conductor Size | 2 AWG to 10 AWG |
| Grounding Wires Connected To | 1/2 in to 1 in Pipe |
| Type - Grounding Connector | Mechanical |
| Number of Wires - Grounding | 1 |
| Type | COMMERCIAL |
| Item - Grounding Connector | Grounding Connector |
| Material of Construction | Solid Cast Bronze |
| Material - Grounding Connector | Die Cast Zinc |
| Wire Size - Grounding | 10 to 2 AWG |
| Rod Dia. | 1/2" to 1" Pipe |
| Standards | UL Listed, UL467 |
| Grounding Wire Size | 10 to 2 AWG STR |
| Overall Width | 5/8 in |
| For Minimum Ground Conductor Wire Size | 10 AWG SOL |
| For Maximum Ground Conductor Wire Size | 2 AWG STR |
| Description/Special Features | Zinc Cast |
| Torque | 50 in-lb |
| For Minimum Pipe Size | 1/2 in |
| For Maximum Pipe Size | 1 in |
| Overall Length | 2-1/4 in |
| For Use With | Copper Conductor, Water Pipes |
| Accessory Type | Ground Clamp |
| Overall Height | 1-9/16 in |
| Dimension - Width inch | 0.63 in |
| Application | For Bare Wire |
| UL Listed | Yes |
| Plated | N |
| Conductor - Pipe EMT Size | 1/2 in;3/4 in;1 in |
| Item Type | 3A |
| Conductor - Copper Str Size Range | 10 AWG - 2 AWG |
| Dimension - L Length Overall mm | 56 mm |
| Certification - CSA Approved | No |
| Dimension - Pad Width inch | 1/2 in |
| Plating Type | Zinc |
| Conductor - AL Str Size Range | 45140 |
| Conductor - Rigid Pipe Size Range | 1/2" - 1" |
| Industry Standard(s) | UL467 |
| Dimension - Length Overall inch | 2-1/4 in |
| Dimension - Width mm | 16 mm |
| Material - Hardware | Steel |
| Dimension - Height inch | 1.56 in |
| Conductor - Copper Str Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Standards - Industry Standards Met | UL467 |
| Conductor - Pipe EMT Size Range | 1/2 in-1 in |
| Package Quantity | 5 |
