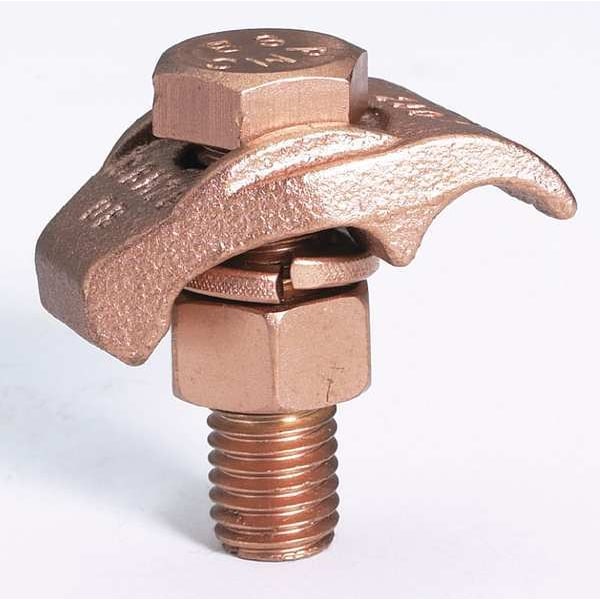

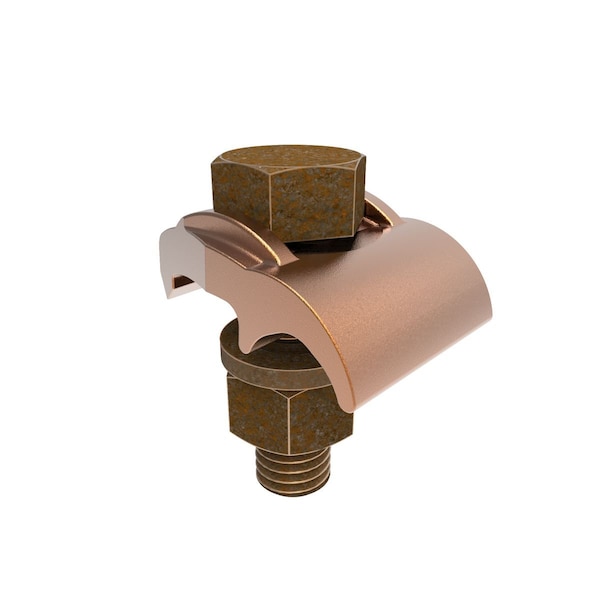

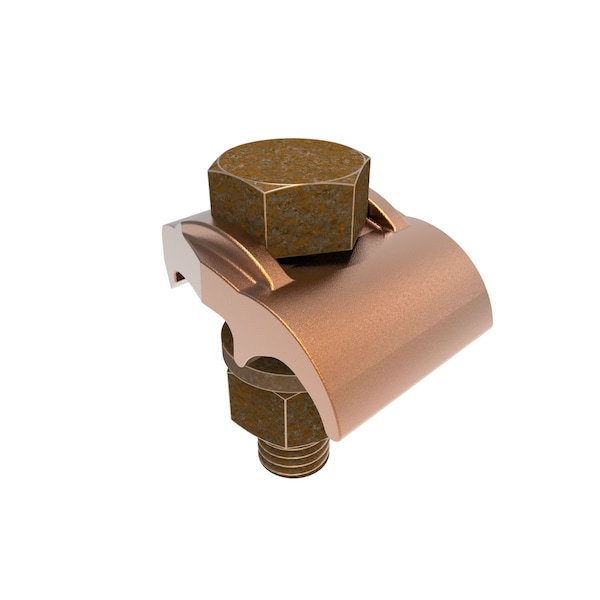

Conector para tierra, calibre 4AWG, 1.5 pulgadas.
| Item | Grounding Connector |
|---|---|
| Material | Copper |
| Standards | UL Listed Direct Burial, UL467 |
| Conductor Size | 2/0 AWG to 4 AWG |
| Type | COMMERCIAL |
| Wire Size - Grounding | 4 to 2/0 AWG |
| Grounding Wires Connected To | 1/4 in Bar |
| Material - Grounding Connector | Copper Alloy |
| Material of Construction | Copper Alloy |
| Item - Grounding Connector | Grounding Connector |
| Number of Wires - Grounding | 1 |
| Type - Grounding Connector | Mechanical |
| Grounding Wire Size | 4 to 2/0 AWG SOL, 4 to 2/0 AWG STR |
| For Minimum Ground Conductor Wire Size | 4 AWG SOL |
| Overall Length | 15/16 in |
| For Maximum Ground Conductor Wire Size | 2/0 AWG STR |

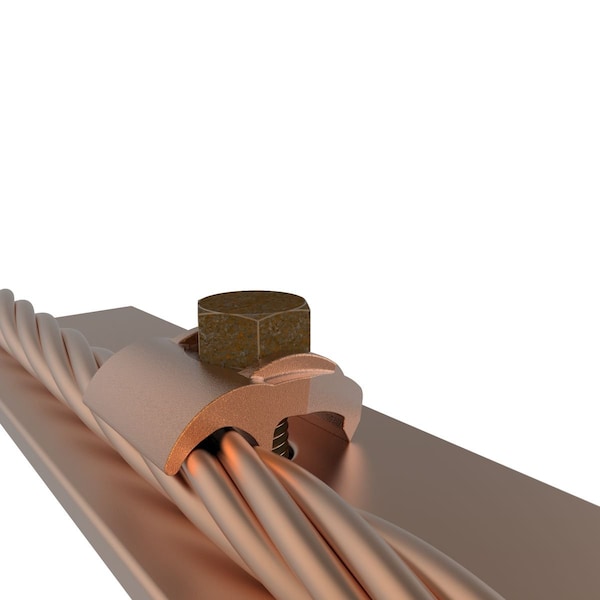

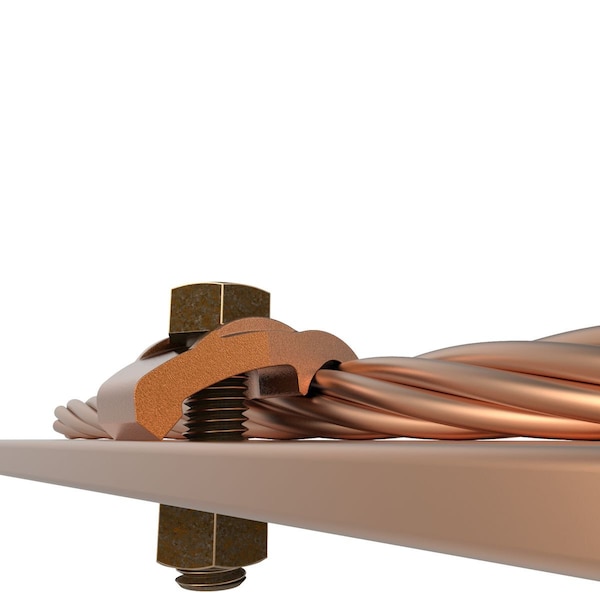

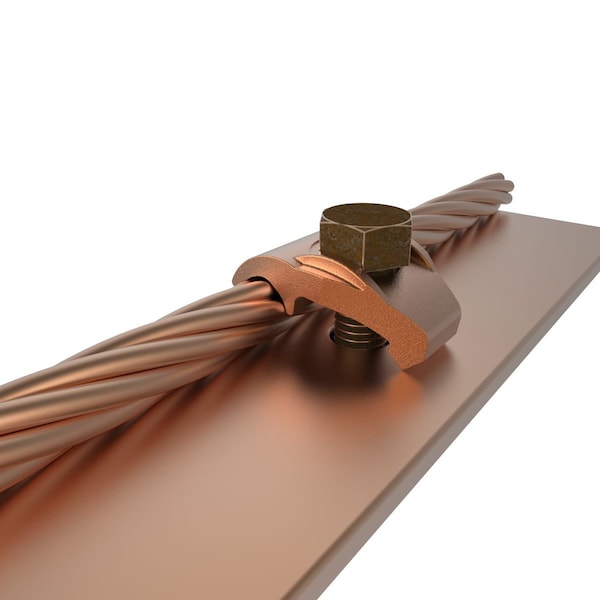

| Description/Special Features | Clamps One Cable Directly to Bar, Direct Burial |
| Torque | 240 in-lb |
| For Use With | Copper Conductors, Flat Bar |
| Overall Height | 1-1/2 in |
| Overall Width | 1-11/32 in |
| Accessory Type | Grounding Connector |
| Application | For Copper Cable To Bar, Direct Burial Cable |
| Conductor - Copper Str Size Range | 4 AWG-2/0 AWG |
| Plated | N |
| Certification - CSA Approved | No |
| Conductor - Copper Str Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG |
| Dimension - Width mm | 34 mm |
| Dimension - L Length Overall mm | 24 mm |
| Material Type - Screw | DURIUMâ„¢ Silicon Bronze |
| Certification - UL Listed Direct Burial | Yes |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Dimension - Length Overall inch | 0.94 in |
| Installation Torque Recommended in-lb | 240 lb-in |
| Dimension - Width inch | 1.34 in |
| Industry Standard(s) | UL467 |
| Plating Type | Unplated |
| Dimension - Height inch | 1.49 in |
| Standards - Industry Standards Met | UL467 |
| Conductor - Copper Solid Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG |
| UL Listed | Yes |
| Dimension - Width fraction | 1-1/3 in |
| Conductor - Copper Solid Size Range | #4 AWG-2/0 AWG |
| Package Quantity | 1 |
