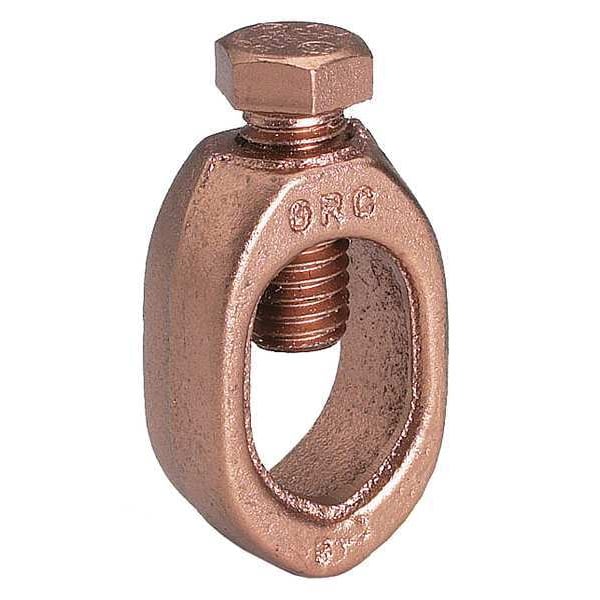

Ground Rod Clamp, 8AWG, 2.47In, PK5
| Item - Grounding Connector | Grounding Connector |
|---|---|
| Item | Grounding Connector |
| Type - Grounding Connector | Mechanical |
| Type | COMMERCIAL |
| Wire Size - Grounding | 8 to 1/0 AWG |
| Material | Copper |
| Grounding Wires Connected To | 3/4 in Rod |
| Standards | UL Listed Direct Burial, UL467 |
| Material - Grounding Connector | Copper Alloy |
| Number of Wires - Grounding | 1 |
| Rod Dia. | 3/4" Rod |
| Conductor Size | 1/0 AWG to 8 AWG |
| Material of Construction | Copper Alloy |
| For Use With | Copper Conductors, Ground Rods |
| Description/Special Features | Direct Burial |
| Grounding Wire Size | 8 AWG SOL, 8 to 1/0 AWG STR |
| Overall Height | 2-13/32 in |
| Overall Width | 1-3/32 in |
| Bolt Size | 3/8 in |
| Accessory Type | Ground Clamp |
| For Minimum Ground Conductor Wire Size | 8 AWG SOL |
| For Rod Dia. | 3/4 in |
| Overall Length | 21/32 in |
| For Maximum Ground Conductor Wire Size | 1/0 AWG STR |
| Application | For Joining A Range Of Cable To Copper Clad, Galvanized Steel, And Stainless Steel Ground Rods, Direct Burial Applications In Earth And Concrete |
| Dimension - Width inch | 1.09 in |
| Conductor Type | Solid-Size |
| Dimension - B Length inch | 0.65 in |
| Standards - Industry Standards Met | UL467 |
| Conductor - Copper Solid Size Range | 8 AWG |
| Plating Type | Unplated |
| Certification - UL Listed Direct Burial | Yes |
| Dimension - Height inch | 2.4 in |
| Dimension - Width mm | 28 mm |
| Industry Standard(s) | UL467 |
| Plated | N |
| Dimension - Length Side B inch | 0.65 in |
| Conductor - Copper Str Size Range | 8 AWG-1/0 |
| Conductor - Rod Size | 3/4 in |
| UL Listed | Yes |
| Package Quantity | 5 |
