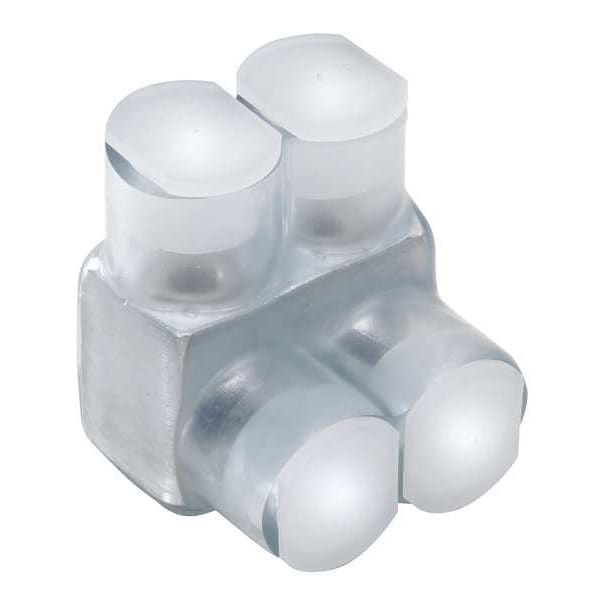

Insulated Multitap Connector, 1.52 In. L
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | Single-Sided Entry |
| No. of Ports | 2 |
| Min. Conductor Size | 14 AWG |
| Max. Conductor Size | 2/0 AWG |
| Insulation Material | Plastisol |
| Stud Size | 1/8 in |
| Material | Aluminum |
| Length | 1.52 in |
| Width | 1.4 in |
| Max. Voltage | 600V AC/DC |
| Screw Material | Steel |
| Body Material | Aluminum |
| Direct Burial Rated | No |
| Standards | CSA Approved, UL 486A, UL 486B, UL Listed |
| Head Style | Hex |
| Length (Straight Wireway) | 1.52 in |
| Strip Length | 11/16 in |
| Maximum Voltage | 600 V |
| Current | 175 A |
| Mounting Hole Size | Not Applicable |
| Maximum Operating Temperature | 194 deg F |
| Torque | 120 in-lb |
| Overall Length | 1.52 in |
| Screw Finish | Tin Plated |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Color | Clear |
| Compatible with Product Type | Code Conductor |
| For Conductor Material | Copper, Aluminum |
| RoHS Compliant | Yes |
| Finish | Unplated |
| Number of Ports | 2 |
| Overall Width | 1.4 in |
| Tap Shape | L |
| Hex Size | 3/16 in |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Special Features | Eliminates Taping, Insulated, Lowers Installation Costs, Oxide Inhibitor Inhibits Moisture and Contaminants From Entering the Contact Area, Saves Time |
| Type | BIT |
| Conductor Size | 14-2/0 AWG |
| Physical Attribute - Screw Type | Allen |
| Conductor - AL Str Size | 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG |
| Operating Voltage | 600 V |
| UL Listed | Yes |
| Industry Standard(s) | UL468A-468B |
| Conductor Type | AL C Str-SizeCU C Str-Size |
| Hex Key | 3/16 in |
| Dimension - L Length Overall mm | 39 mm |
| Physical Attribute - Number of Screws | 2 |
| Rating - Minimum Voltage | 600 |
| Certification - UL Listed Direct Burial | No |
| Dimension - Width mm | 36 mm |
| Dimension - Height fraction | 1.375 in |
| Dimension - Height inch | 1.38 in |
| Dimension - Length Overall inch | 1.52 in |
| Insulation Type | Plastisol |
| Installation Torque Recommended in-lb | 120 in-lb |
| Conductor - AL Str Size Range | 14 - 2/0 Str |
| Temperature Rating | 90 °C |
| Dimension - Width fraction | 1.4 in |
| Dimension - Width inch | 1.4 in |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Certification - CSA Approved | Yes |
| Voltage - Maximum | 600 V |
| Insulation | Y |
| Conductor - Copper Str Size Range | 14 - 2/0 Str |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG |
| Trade Name | UNITAPâ„¢ |
| Material - Hardware | Aluminum |
| Plating Type | Unplated |
| Plated | N |
| Standards - Industry Standards Met | UL468A-468B |
| Package Quantity | 1 |
