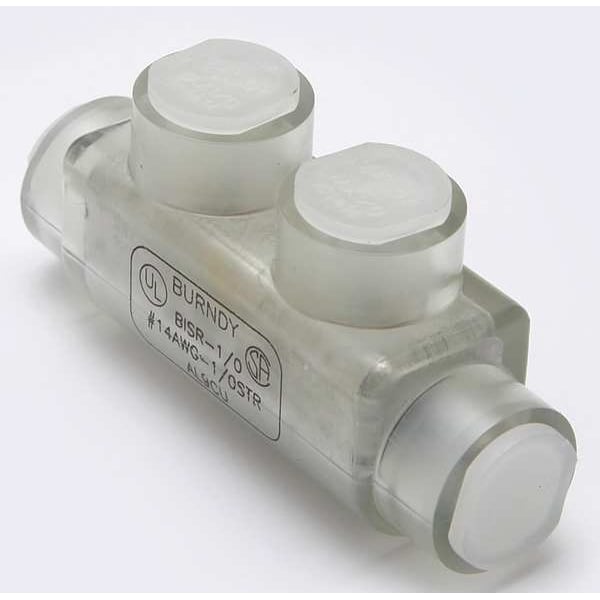

Insulated Multitap Connector, 2.91 In. L
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | Double-Sided Entry |
| No. of Ports | 2 |
| Min. Conductor Size | 14 AWG |
| Max. Conductor Size | 1/0 AWG |
| Stud Size | 3/16 in |
| Insulation Material | Plastisol |
| Material | Aluminum |
| Length | 2.91 in |
| Width | 1.38 in |
| Head Style | Hex |
| Direct Burial Rated | No |
| Body Material | Aluminum |
| Screw Material | Aluminum |
| Max. Voltage | 600V AC/DC |
| Standards | CSA Approved, UL 486A, UL 486B, UL Listed |
| Length (Straight Wireway) | 2.91 in |
| Tap Shape | T |
| Mounting Hole Size | Not Applicable |
| RoHS Compliant | Yes |
| Torque | 50 in-lb |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Special Features | Eliminates Taping, Insulated, Lowers Installation Costs, Oxide Inhibitor Inhibits Moisture and Contaminants From Entering the Contact Area, Saves Time |
| Finish | Unplated |
| Maximum Voltage | 600 V |
| Strip Length | 1 in |
| Overall Width | 0.91 in |
| Maximum Operating Temperature | 194 deg F |
| Compatible with Product Type | Code Conductor |
| For Conductor Material | Copper, Aluminum |
| Current | 150 A |
| Number of Ports | 2 |
| Color | Clear |
| Overall Length | 2.91 in |
| Hex Size | 3/16 in |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Conductor Size | 14-1/0 AWG |
| Type | BISR |
| Dimension - L Length Overall mm | 74 mm |
| Certification - CSA Approved | Yes |
| Dimension - Height inch | 1.38 in |
| Standards - Industry Standards Met | UL468A-468B |
| Industry Standard(s) | UL468A-468B |
| Conductor - AL Str Size Range | 14 - 1/0 Str |
| Physical Attribute - Screw Type | Allen |
| Dimension - Length Overall inch | 2.91 in |
| Plating Type | Unplated |
| Voltage - Maximum | 600 V |
| Insulation Type | Plastisol |
| Insulation | Y |
| UL Listed | Yes |
| Conductor Type | AL C Str-SizeCU C Str-Size |
| Operating Voltage | 600 V |
| Hex Key | 45001 |
| Plated | N |
| Rating - Minimum Voltage | 600 |
| Temperature Rating | 194 |
| Trade Name | UNITAPâ„¢ |
| Dimension - Width inch | 0.91 in |
| Certification - UL Listed Direct Burial | No |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Conductor - Copper Str Size Range | 14 - 1/0 Str |
| Physical Attribute - Number of Screws | 2 |
| Dimension - Width mm | 23 mm |
| Package Quantity | 1 |
