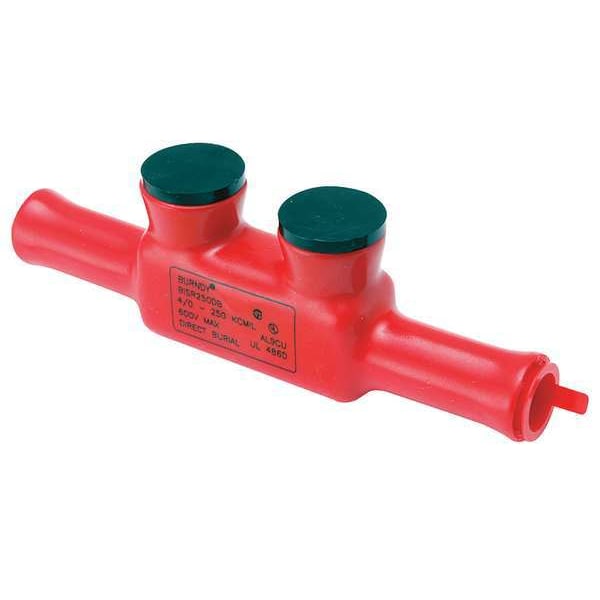

Conector multitap aislado, 6.70 pulgadas de longitud.
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | Double-Sided Entry |
| No. of Ports | 2 |
| Min. Conductor Size | 4/0 |
| Max. Conductor Size | 250 kcmil |
| Stud Size | 5/16 in |
| Insulation Material | Plastisol |
| Material | Aluminum |
| Length | 6.7 in |
| Width | 2.17 in |
| Screw Material | Aluminum |
| Standards | UL 486A, UL 486B, UL Listed |
| Direct Burial Rated | Yes |
| Max. Voltage | 600V AC/DC |
| Head Style | Hex |
| Body Material | Aluminum |
| Length (Straight Wireway) | 6.7 in |
| Overall Width | 1.18 in |
| Finish | Unplated |
| Overall Length | 6.7 in |
| Tap Shape | T |
| Special Features | Insulated, Oxide Inhibitor Pre-Installed Preventing Moisture and Contaminants From Entering Contact Area, Saves Time |
| Mounting Hole Size | Not Applicable |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| RoHS Compliant | Yes |
| Number of Ports | 2 |
| Color | Red |
| Torque | 360 in-lb |
| Maximum Operating Temperature | 194 deg F |
| Strip Length | 7/8 in |
| Hex Size | 5/16 in |
| For Conductor Material | Copper, Aluminum |
| Maximum Voltage | 600 V |
| Conductor Size | 4/0 AWG-250 KCMIL |
| Type | BISR |
| Standards - Industry Standards Met | UL468A-468B |
| Voltage - Maximum | 600 V |
| Item Type | 3B |
| Temperature Rating | 90 °C |
| Hex Key | 5/16 in |
| Conductor - Copper Str Size Range | 4/0 - 250 Str |
| Certification - CSA Approved | No |
| Dimension - Strip Length inch | 7/8 in |
| Conductor - Copper Str Size | 4/0 AWG;250 kcmil |
| Dimension - L Length Overall mm | 170.18 mm |
| Application | For Outside Direct Burial |
| Conductor Type | AL C Str-SizeCU C Str-Size |
| Conductor - AL Str Size Range | 4/0 - 250 Str |
| Operating Voltage | 600 V |
| Rating - Minimum Voltage | 600 |
| Dimension - Screw Size inch | 45,054 |
| Installation Torque Recommended in-lb | 360 in-lb |
| Trade Name | UNITAPâ„¢ |
| Dimension - Height inch | 2.17 in |
| Insulation | Y |
| Industry Standard(s) | UL468A-468B |
| Dimension - Width inch | 1.18 in |
| Plating Type | Unplated |
| Dimension - Width mm | 29.97 mm |
| UL Listed | Yes |
| Physical Attribute - Number of Screws | 2 |
| Conductor - AL Str Size | 4/0;250 kcmil |
| Insulation Type | Plastisol |
| Certification - UL Listed Direct Burial | Yes |
| Plated | N |
| Physical Attribute - Screw Type | Allen |
| Dimension - Length Overall inch | 6.7 in |
| Package Quantity | 1 |
