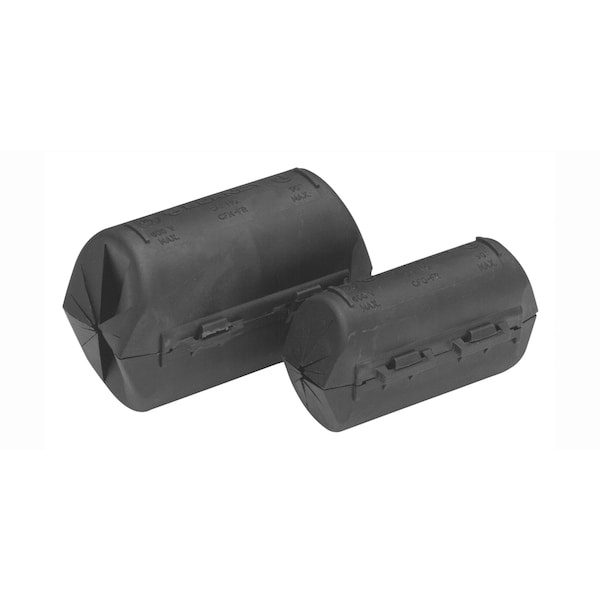

INSULATING COVER FOR CU H-TAP, FITS YH292C YH298C & YH2929,250 KCMIL
| Color | Black |
|---|---|
| Material | Polycarbonate |
| Type | CF-FR, Flame Retardant |
| Thickness | 0.08 in |
| Certification - 94V0 Rated | N |
| Rating - KVA | 35 kV |
| Item Type | 3A |
| Voltage - Maximum | 35000 |
| Operating Temperature | 90 °C |
| Insulation | Y |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Str Size Range | 250 kcmil |
| Dimension - Width inch | 1.59 in |
| UL Listed | Yes |
| Connector Type | H-Tap |
| Color Code | Purple |
| Plating Type | Unplated |
| Application | For O, D3, N, And KR Die Size H-Tap Compression Connectors |
| Dimension - L Length Overall mm | 86 mm |
| Conductor - Max Length | 0.95 in |
| Voltage Rating | 600 V |
| Temperature Rating | 194 |
| Dimension - Length Overall inch | 3.39 in |
| Conductor - Copper Str Size | 250 kcmil |
| Fire Resistance | Yes |
| Dimension - Height inch | 2.02 in |
| Material Rating | Copper |
| Package Quantity | 1 |
