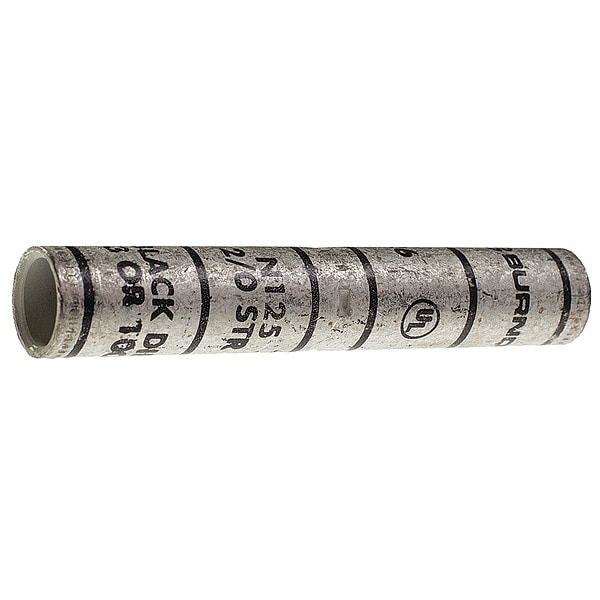

Long-Barrel Splice, 2/0 AWG Wire Gauge
| Item | Long-Barrel Splice |
|---|---|
| Wire Gauge | 2/0 AWG |
| Color Code | Black |
| Die Code | 13 |
| Material | Copper |
| Length | 3.3 in |
| Outside Dia. | 0.56 in |
| Standards | CSA Certified, UL Listed |
| RoHS Compliant | Yes |
| Barrel Size | Long |
| Barrel Finish | Tin Plated |
| Minimum Wire Size | 2/0 AWG |
| Overall Length | 3.3 in |
| Maximum Wire Size | 2/0 AWG |
| Barrel Outside Diameter | 0.56 in |
| For Conductor Material | Copper |
| Seam Style | Seamless |
| Contact Material | Copper |
| Maximum Conductors | 2 |
| Maximum Operating Temperature | 194 Degrees F |
| Strip Length | 1-9/16 in |
| Maximum Wire Insulation Diameter | 0.56 in |
| Maximum Voltage | 35 kV |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Number of Crimps | 2 |
| Special Features | Center Conductor Stops, High Pull Out Force, Oil Stop: No; Tapered End: No |
| For Wire Type | Stranded |
| Compatible Installation Tool Model Number | MD6, MD7-34R, OUR840, PAT81KFT-18V, Y35, Y39, Y46, Y750, Y81KFT, Y81KFTMBH |
| Package Quantity | 1 |
