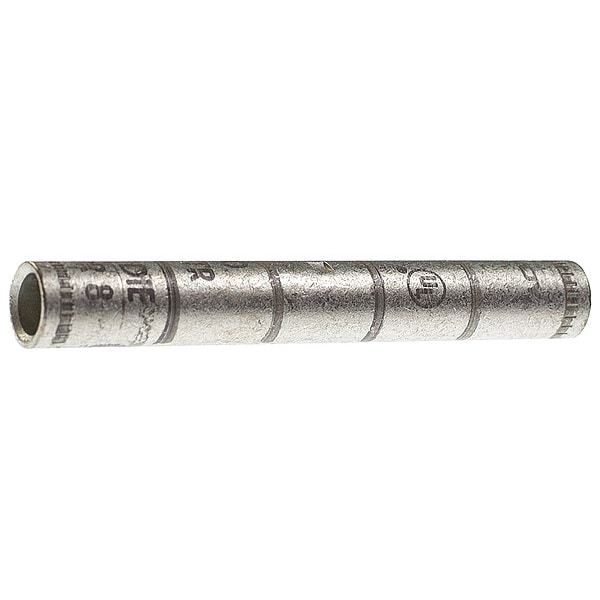

Long-Barrel Splice, 4 AWG Wire Gauge
| Item | Long-Barrel Splice |
|---|---|
| Wire Gauge | 4 AWG |
| Color Code | Gray |
| Die Code | 8, 346 |
| Material | Copper |
| Length | 2.55 in |
| Outside Dia. | 0.34 in |
| Standards | CSA Certified, UL Listed |
| Contact Material | Copper |
| Maximum Voltage | 35 kV |
| Compatible Installation Tool Model Number | MD6, MD7-34R, OUR840, PAT81KFT-18V, Y35, Y39, Y46, Y750, Y81KFT, Y81KFTMBH |
| For Wire Type | Stranded |
| Termination Style | Crimp |
| Number of Crimps | 2 |
| Contact Finish | Tin |
| Maximum Conductors | 2 |
| Maximum Operating Temperature | 194 Degrees F |
| RoHS Compliant | Yes |
| Maximum Wire Size | 4 AWG |
| Special Features | Center Conductor Stops, High Pull Out Force, Oil Stop: No; Tapered End: No |
| Overall Length | 2.55 in |
| Barrel Outside Diameter | 0.34 in |
| Barrel Size | Long |
| Barrel Finish | Tin Plated |
| Maximum Wire Insulation Diameter | 0.34 in |
| Seam Style | Seamless |
| Strip Length | 1-3/16 in |
| Minimum Wire Size | 4 AWG |
| For Conductor Material | Copper |
| Package Quantity | 1 |
