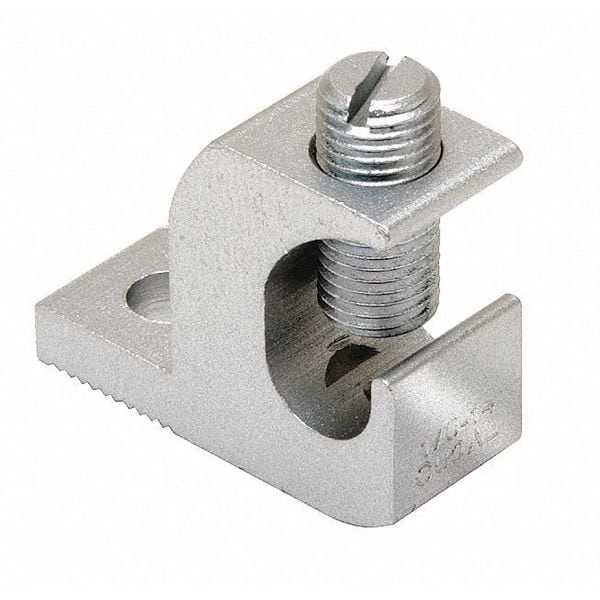

Conector mecánico, Abrazadera de inserción, 4 a 14 AWG, paquete de 5.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Lay-In Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded/Solid |
| Max. Conductor Size | 4 AWG Stranded/Solid |
| Stud Size | 1/4 in |
| Material | Tin-Plated Aluminum |
| Length | 1.07 in |
| Width | 0.78 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Slotted |
| Body Material | Aluminum |
| Screw Material | Steel |
| Length (Straight Wireway) | 1.07 in |
| Tongue Length | 0.62 in |
| Contact Finish | Tin |
| Overall Depth | 3/8 in |
| Special Features | Easy Installation, Provides Low Contact Resistance |
| Hole Diameter | 0.22 in |
| Tongue Width | 0.39 in |
| Tongue Thickness | 0.13 in |
| For Stud Size | 1/4 in |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Overall Length | 1.07 in |
| Screw Finish | Zinc Plated |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Maximum Operating Temperature | 194 deg F |
| Torque | 35 in-lb |
| Number of Conductors | 1 |
| Maximum Voltage | 600 V |
| For Conductor Material | Copper, Aluminum |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| Overall Width | 0.78 in |
| Type | BGBL, Lay-In |
| Material Type - Screw | Steel - Zinc Plated |
| Dimension - N inch | 0.19 in |
| Dimension - Length Overall inch | 1.07 in |
| Dimension - Height fraction | 7/9 in |
| Conductor - Copper Str Size Range | 14 AWG-4 AWG |
| Conductor Type | AL C Str-SizeCU C Str-SizeCU C Solid-Size |
| Dimension - Pad Width inch | 0.38 in |
| Conductor - AL Str Size | 8 AWG;6 AWG;4 AWG |
| Certification - CSA Approved | Yes |
| Voltage - Maximum | 600 V |
| Dimension - Hole Size mm | 6 mm |
| UL Listed | Yes |
| Conductor - Copper Solid Size | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Standards - Industry Standards Met | UL468A-468B |
| Plated | Y |
| Installation Torque Recommended in-lb | 35 LBS/in |
| Conductor - Copper Solid Size Range | 14 AWG-4 AWG |
| Plating Type | Tin |
| Dimension - Height inch | 0.78 in |
| Trade Name | QIKLUGâ„¢ |
| Application | For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications |
| Dimension - Hole Size inch | 0.22 in |
| Industry Standard(s) | UL468A-468B |
| Temperature Rating | 194 |
| Hex Size | Slot |
| Dimension - D inch | 0.62 in |
| Dimension - L Length Overall mm | 27 mm |
| Physical Attribute - Screw Type | Slot |
| Conductor - AL Str Size Range | 8 AWG-4 AWG |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Package Quantity | 5 |
