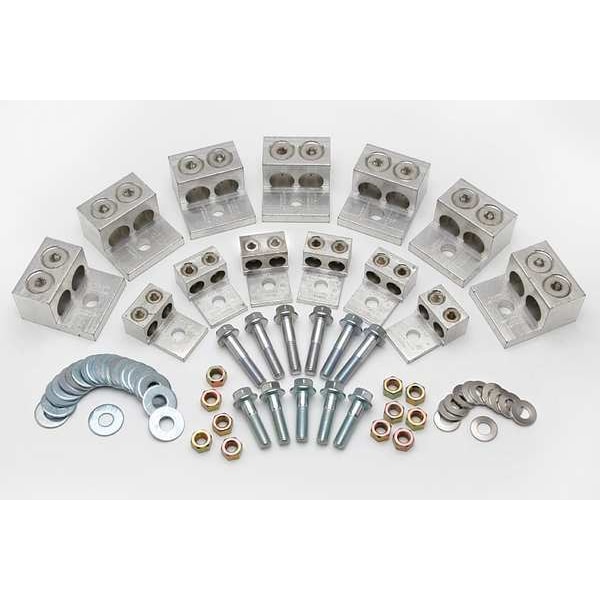

Mechancl Conn, Lug Kit, 800 kcmil to 6 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Transformer Lug Kit |
| No. of Conductors | 1 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 800 kcmil Stranded |
| Stud Size | 1/2 in 13 |
| Material | Aluminum |
| Head Style | Hex |
| Body Material | Aluminum |
| Special Features | Compensates For Dissimilar Metal Expansion And Contraction, Plated Steel Cap Screws, Provide Low Contact Resistance |
| For Stud Size | 1/2 in |
| Connection Orientation | Dual Rated Lug |
| Overall Width | 4-1/2 in |
| Overall Length | 7.06 in |
| Overall Depth | 6-1/8 in |
| For Conductor Material | Copper, Aluminum |
| Hole Diameter | 0.56 in |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Number of Conductors | 1 |
| Includes | (11) 1/2 in Belleville Washers, (11) 1/2-13 Hex Head Nuts, (22) 1/2 in Flatwashers, (5) 1/2-13 x 2 in, (6) 1/2-13 x 2-1/2 in Hex Bolts, (6) K2A31U, (7) K2A40U |
| Contact Finish | Tin |
| Type | Bolted Lugs & Terminals |
| Certification - UL Listed Direct Burial | No |
| Conductor - AL Str Size | 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil |
| UL Listed | No |
| Certification - CSA Approved | No |
| Application | used to provide low contact resistance |
| Package Contents | (6) K2A31U, (7) K2A40U;(5) 1/2-13 x 2 in, (6) 1/2-13 x 2-1/2 in Hex Bolts;(11) 1/2-13 Hex Head Nuts;(22) 1/2 in Flatwashers;(11) 1/2 in Belleville Washers |
| Package Quantity | 1 |
