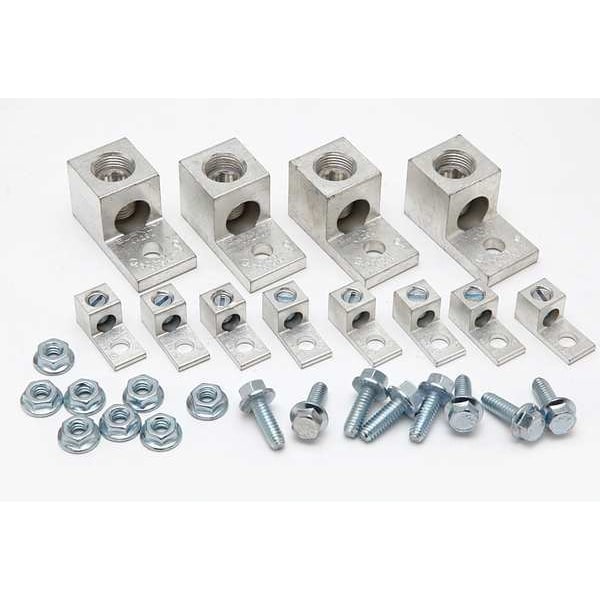

Conector mecánico, kit de orejeta, de 250 kcmil a 14 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Transformer Lug Kit |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded |
| Max. Conductor Size | 250 kcmil Stranded |
| Material | Aluminum |
| Head Style | Hex |
| Body Material | Aluminum |
| Number of Conductors | 1 |
| Contact Finish | Tin |
| Overall Depth | 7 in |
| Includes | (4) KA29U, (8) 1/4-20 in Hex Head Nut, (8) 1/4-20 x 3/4 in Hex Head Bolt, (8) KA2U, Captive to Nut |
| Overall Width | 1-1/4 in |
| Connection Orientation | Dual Rated Lug |
| Special Features | Compensates For Dissimilar Metal Expansion And Contraction, Plated Steel Cap Screws, Provide Low Contact Resistance |
| For Stud Size | 1/4 in, 5/16 in |
| Hole Diameter | 0.27 in, 0.33 in |
| Overall Length | 7 in |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| For Conductor Material | Copper, Aluminum |
| Type | Bolted Lugs & Terminals |
| UL Listed | No |
| Application | used to provide low contact resistance |
| Certification - UL Listed Direct Burial | No |
| Certification - CSA Approved | No |
| Package Contents | (8) KA2U , (4) KA29U;(8) 1/4-20 x 3/4 in Hex Head Bolt;(8) 1/4-20 in Hex Head Nut;Captive to Nut |
| Conductor - AL Str Size | 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Package Quantity | 1 |
